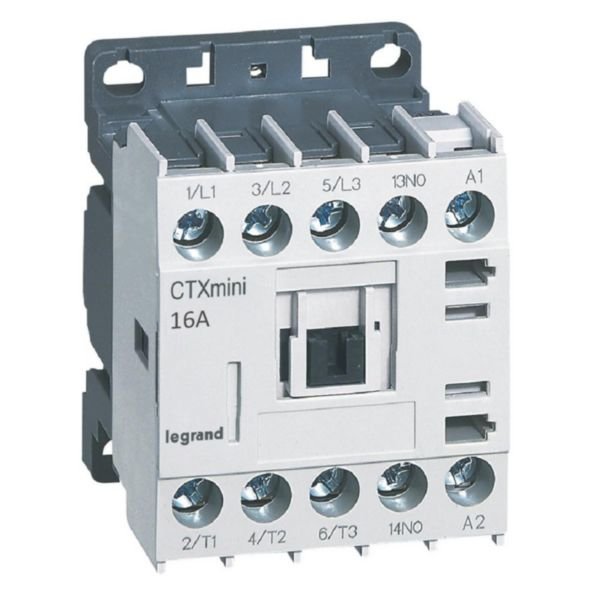

Contactor CTX3 Mini 3P 16A 1NO 415V AC | 12 Million Mechanical Operations | Compact Size | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 417069
$73.80 List price: $92.00
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 16A 1NO 415V AC is designed for efficient motor control in industrial and tertiary applications. With a rated current of 16A for AC-3 motor switching and a compact design, it optimizes cabinet space while ensuring reliable performance. Ideal for switching 3-phase motors up to 7.5 kW, this contactor features screw terminals for easy installation and can endure up to 12 million mechanical operations.

Product Name/Title: Contactor CTX3 Mini 3P 16A 1NO 415V AC | 12 Million Mechanical Operations | Compact Size | @Each of 1 | by Legrand

Brand: Legrand

SKU: 417069

Alternatively Known As: Mini Contactor 3P 16A, Legrand CTX3 Motor Contactor, 3 Pole Contactor 16 Amp

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 352.75-456.5 V
  • Number of main contacts: 3 normally open
  • Number of auxiliary contacts: 1 normally open
  • Rated operation current AC-1 (400 V): 20 A
  • Rated operation current AC-3 (400 V): 16 A
  • Rated operation power AC-3 (400 V): 7.5 kW
  • Type of electrical connection: Cable clamp
  • Number of operation cycles (AC-3) per hour: 1800
  • Endurance: 12 million mechanical, 1 million electrical operations
  • Dimensions (H x L x W): 80mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 16A for AC-3 motor switching
  • Switching capacity for resistive loads up to 20A (AC-1)
  • 1 normally open auxiliary contact
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Can be equipped with Legrand CTX3 mini auxiliaries and accessories
  • Compact size for optimized cabinet space
  • Mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
  • Installation by a qualified electrician is recommended. Follow all instructions and use only Legrand branded accessories.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 7.5 kW (415V)
  • Switching of inductive and non-inductive loads
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand Contactor CTX3 Mini 3P 16A 1NO 415V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
