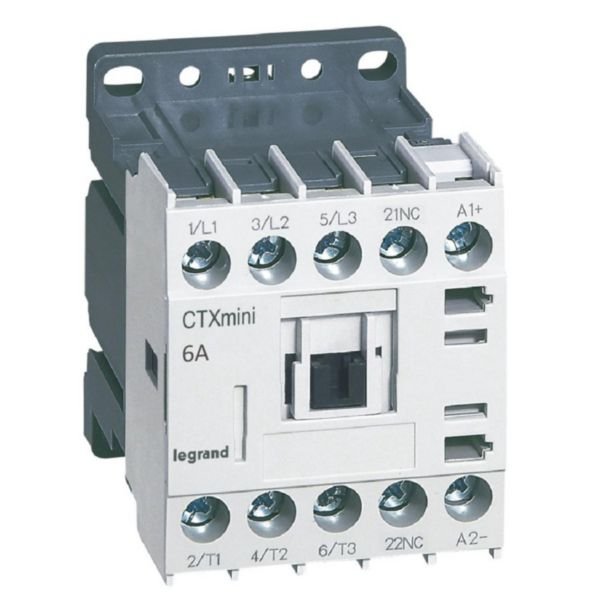

Contactor CTX3 Mini 3P 6A 24V DC | 1NC Auxiliary Contact | Compact Design | by Legrand
The Contactor CTX3 Mini 3P 6A 24V DC is perfect for controlling 3-phase motors up to 2.2 kW, featuring a normally closed auxiliary contact for added functionality. Designed for industrial and tertiary applications, this compact contactor ensures reliable performance with a rated current of 6A and screw terminals for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CTX3 Mini 3P 6A 24V DC | 1NC Auxiliary Contact | Compact Design | by Legrand
Brand: Legrand
SKU: 417011
Alternatively Known As: Mini Contactor 3P 6A 24V DC, Legrand CTX3 Motor Contactor, 3 Pole Contactor 6 Amp 24V DC
Technical Specifications
- Rated control supply voltage: 20.4-26.4 V DC
- Number of main contacts (normally open): 3
- Number of main contacts (normally closed): 0
- Number of auxiliary contacts (normally closed): 1
- Rated operation current AC-1 (400 V): 20 A
- Rated operation current AC-3 (400 V): 6 A
- Rated operation power AC-3 (400 V): 2.2 kW
- Type of electrical connection: Cable clamp
- Suitable for distribution board installation
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.2 kg
Key Features
- Rated current 6A (AC-3) for switching 3-phase motors up to 2.2 kW
- Resistive loads up to 20A (AC-1)
- 1 normally closed auxiliary contact (NC) compliant with IEC 60947-4-1
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Operation cycles up to 1800 per hour (AC-3)
- Compact size for optimized cabinet space
- Mounting on 35 mm 'top hat' rail (IEC 60715) or mounting plate
- Environmentally conscious design and substance-restriction compliant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Tertiary and industrial installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 2.2 kW (415V)
- Use in distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with environmentally conscious processes
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Contactor CTX3 Mini 3P 6A 1NC 24V DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
