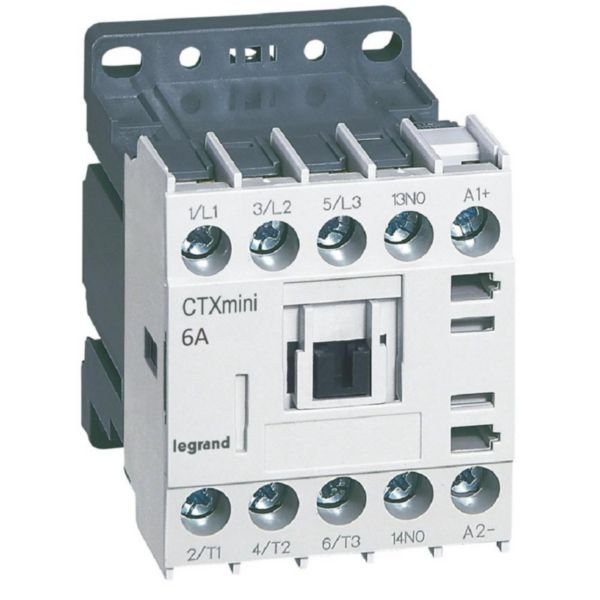

Contactor CTX3 Mini 3P 6A 24V DC | 1NO Auxiliary Contact | Compact Design | by Legrand
The Contactor CTX3 Mini 3P 6A 24V DC is perfect for switching 3-phase motors up to 2.2 kW, featuring a normally open auxiliary contact and a compact design for optimized cabinet space. Ideal for industrial and tertiary applications, this reliable contactor ensures up to 12 million mechanical operations, making it a durable choice for your electrical needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage: 20.4-26.4 V DC
- Number of main contacts (normally open): 3
- Number of auxiliary contacts (normally open): 1
- Rated operation current AC-1 (400 V): 20 A
- Rated operation current AC-3 (400 V): 6 A
- Rated operation power AC-3 (400 V): 2.2 kW
- Type of electrical connection: Cable clamp
- Number of normally closed main contacts: 0
- Number of normally closed auxiliary contacts: 0
- Number of operation cycles (AC-3) per hour: 1800
- Endurance: up to 12 million mechanical and 1 million electrical operations
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.15 kg
Key Features
- Rated current 6A (AC-3) for 3-phase motor switching
- Resistive load switching up to 20A (AC-1)
- 1 normally open auxiliary contact
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Can be equipped with Legrand CTX3 mini auxiliaries and accessories
- Compact size for optimized cabinet space
- Mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 2.2 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
The Legrand Contactor CTX3 Mini 3P 6A 1NO 24V DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
