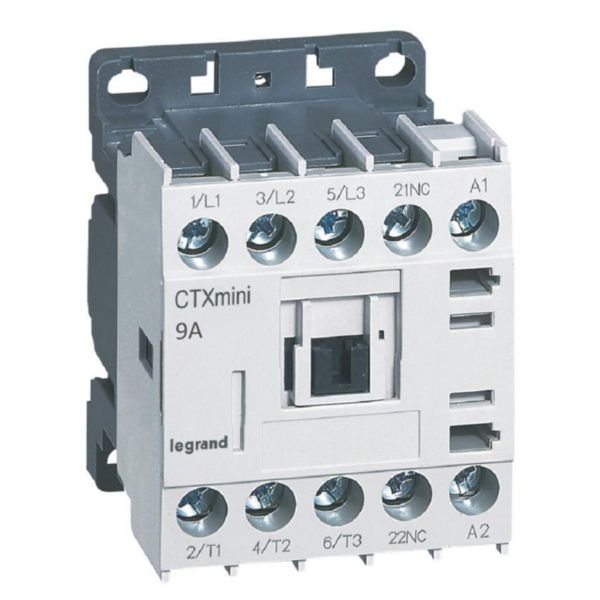

Contactor CTX3 Mini 3P 9A 1NC 230V AC | 12 Million Operations | Compact Design | by Legrand
The Contactor CTX3 Mini 3P 9A 1NC 230V AC is perfect for motor control and protection in industrial and tertiary installations. With a rated current of 9A for 3-phase motors and an endurance of up to 12 million mechanical operations, this compact contactor is designed for reliable performance. Ideal for switching resistive loads up to 20A, it ensures efficient operation in distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CTX3 Mini 3P 9A 1NC 230V AC | 12 Million Operations | Compact Design | by Legrand
Brand: Legrand
SKU: 417036
Alternatively Known As: Mini Contactor 3P 9A 230V AC, Legrand CTX3 Motor Contactor, 3 Pole Contactor 9 Amp 230V
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 195.5-253 V
- Number of main contacts: 3 normally open (NO), 0 normally closed (NC)
- Number of auxiliary contacts: 0 normally open, 1 normally closed
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated operation power at AC-3, 400 V: 4 kW
- Type of electrical connection: Cable clamp
- Screw terminals capacity: Power 2 x 1.25mm² to 2mm², Coil 0.75mm² to 2.5mm², Auxiliary circuit 0.75mm² to 2.5mm²
- Endurance: up to 12 million mechanical and 1 million electrical operations
- Operation cycles per hour (AC-3): 1800
- Mounting: 35 mm 'top hat' mounting rail (IEC 60715) or mounting plate
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.2 kg
Key Features
- Rated current 9A (AC-3) for 3-phase motor switching
- Switches resistive loads up to 20A (AC-1)
- 1 normally closed auxiliary contact (NC) compliant with IEC 60947-4-1
- Endurance up to 12 million mechanical and 1 million electrical operations
- Supports up to 1800 operation cycles per hour (AC-3)
- Compact size for optimized cabinet space
- Screw terminals for power, coil, and auxiliary circuits
- Compatible with all Legrand CTX3 mini auxiliaries and accessories
- Designed with environmentally conscious processes
Professional Installation Requirements
- Installation should be performed by a qualified electrician following all relevant electrical standards and safety guidelines.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 4 kW (415V)
- Switching of resistive loads up to 20A (AC-1)
- Motor control and protection in distribution boards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Designed with substance-restriction compliance
- Manufactured using environmentally conscious processes
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Contactor CTX3 Mini 3P 9A 1NC 230V AC is available for immediate purchase, ideal for motor control and protection in industrial and tertiary electrical installations.
