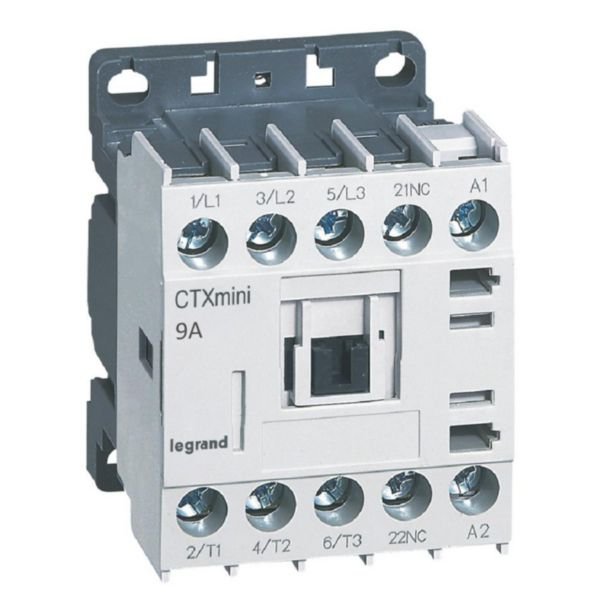

Contactor CTX3 Mini 3P 9A 1NC 415V AC | 12 Million Mechanical Operations | Compact Design | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 417039
$63.20 List price: $78.70
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 9A 1NC 415V AC is engineered for reliable motor control in industrial and tertiary applications. With a rated current of 9A for 3-phase motors up to 4 kW and a compact design, it optimizes cabinet space while ensuring durability with up to 12 million mechanical operations. Ideal for switching inductive and non-inductive loads, this contactor is perfect for distribution boards and comes with a normally closed auxiliary contact for added functionality.

Product Name/Title: Contactor CTX3 Mini 3P 9A 1NC 415V AC | 12 Million Mechanical Operations | Compact Design | @Each of 1 | by Legrand

Brand: Legrand

SKU: 417039

Alternatively Known As: Mini Contactor 3P 9A, Legrand CTX3 Contactor, 3 Pole Motor Contactor, Industrial Motor Contactor

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 352.75-456.5 V
  • Voltage type for actuating: AC
  • Number of normally closed main contacts: 0
  • Number of normally open main contacts: 3
  • Type of electrical connection: Cable clamp
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 9 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Number of auxiliary contacts normally open: 0
  • Number of auxiliary contacts normally closed: 1
  • Suitable for distribution board: Yes
  • Number of operation cycles (AC-3) per hour: 1800
  • Mechanical endurance: up to 12 million operations
  • Electrical endurance: up to 1 million operations
  • Dimensions (H x L x W): 80mm x 70mm x 45mm
  • Weight: 0.2 kg
Key Features
  • Rated current 9A (AC-3) for 3-phase motors up to 4 kW at 415V
  • Resistive loads up to 20A (AC-1)
  • 1 normally closed (NC) auxiliary contact compliant with IEC 60947-4-1
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Can be equipped with all Legrand CTX3 mini auxiliaries and accessories
  • Compact size for optimized cabinet space
  • Mounting on 35 mm 'top hat' rail (IEC 60715) or mounting plate
Professional Installation Requirements
  • Installation should be performed by a qualified electrician following the product instructions and using only Legrand branded accessories.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 4 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.

Available Now

The Legrand Contactor CTX3 Mini 3P 9A 1NC 415V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
