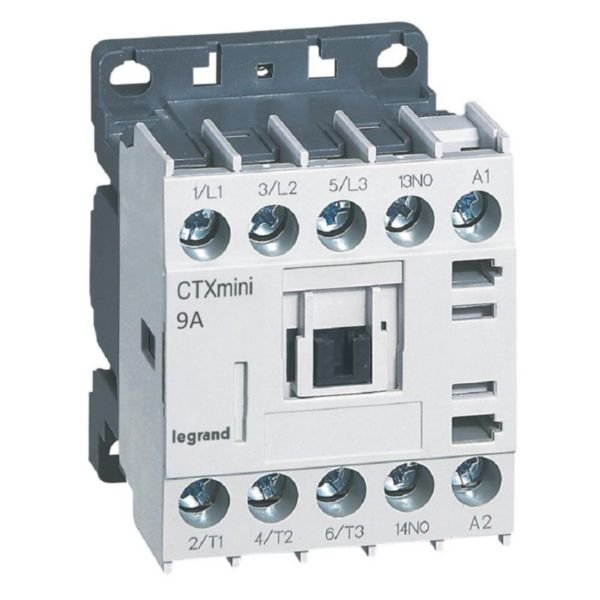

Contactor CTX3 Mini 3P 9A 1NO 110V AC | 12 Million Mechanical Operations | Compact Design | @EA of 1 | by Legrand
The Contactor CTX3 Mini 3P 9A 1NO 110V AC is perfect for switching 3-phase motors up to 4 kW, featuring a rated current of 9A and a compact design for optimized cabinet space. With an impressive endurance of up to 12 million mechanical operations, it's ideal for industrial and tertiary installations, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CTX3 Mini 3P 9A 1NO 110V AC | 12 Million Mechanical Operations | Compact Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417024
Alternatively Known As: Mini Contactor 3P 9A, CTX3 Mini Contactor, Legrand Motor Contactor, 3 Pole Contactor 110V AC
Technical Specifications
- Rated control supply voltage AC 50 Hz: 93.5-121 V
- Rated control supply voltage AC 60 Hz: 93.5-121 V
- Voltage type for actuating: AC
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated operation power at AC-3, 400 V: 4 kW
- Number of auxiliary contacts normally open: 1
- Number of auxiliary contacts normally closed: 0
- Type of electrical connection of main circuit: Cable clamp
- Screw terminals capacity: Power 2 x 1.25mm² to 2mm², Coil 0.75mm² to 2.5mm², Auxiliary circuit 0.75mm² to 2.5mm²
- Number of operation cycles (AC-3) per hour: 1800
- Endurance: up to 12 million mechanical operations and 1 million electrical operations
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.2 kg
Key Features
- Rated current 9A (AC-3) for 3-phase motor switching
- Resistive load switching up to 20A (AC-1)
- 1 normally open auxiliary contact
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Can be equipped with Legrand CTX3 mini auxiliaries and accessories
- Compact size for optimized cabinet space
- Mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
- Installation should be performed by a qualified electrician following local electrical codes and Legrand installation instructions.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 4 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with substance-restriction compliance
- Manufactured through environmentally conscious processes
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
The Legrand Contactor CTX3 Mini 3P 9A 1NO 110V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
