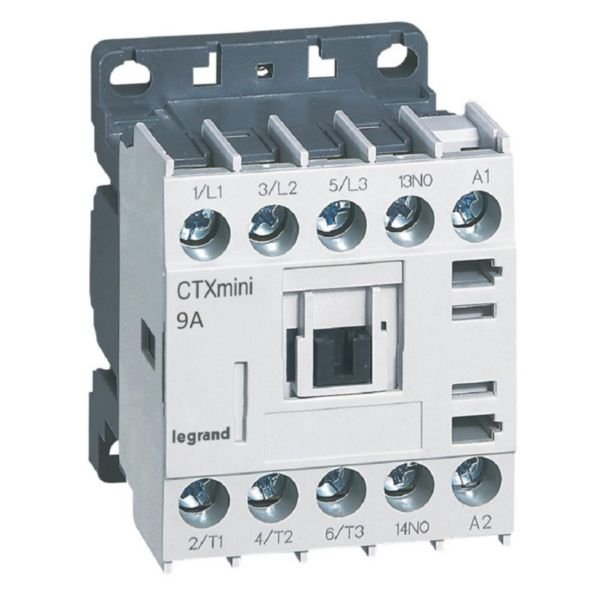

Contactor CTX3 Mini 3P 9A 1NO 230V AC | 20A Switching Capacity | Compact Design | by Legrand
The Contactor CTX3 Mini 3P 9A 1NO 230V AC is designed for efficient motor control, featuring a 20A switching capacity for resistive loads and a compact design that optimizes cabinet space. Ideal for industrial and tertiary applications, this contactor ensures reliable operation with an endurance of up to 12 million mechanical operations, making it a perfect choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CTX3 Mini 3P 9A 1NO 230V AC | 20A Switching Capacity | Compact Design | by Legrand
Brand: Legrand
SKU: 417026
Alternatively Known As: Mini Contactor 3P 9A, CTX3 Mini Motor Contactor, Legrand 3 Pole Contactor, 230V AC Contactor
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 195.5-253 V
- Number of main contacts (normally open): 3
- Number of auxiliary contacts (normally open): 1
- Rated operation current AC-1 (400 V): 20 A
- Rated operation current AC-3 (400 V): 9 A
- Rated operation power AC-3 (400 V): 4 kW
- Type of electrical connection: Cable clamp
- Suitable for distribution board installation
- Mounting: 35 mm top hat rail (IEC 60715) or mounting plate
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.3 kg
Key Features
- Rated current 9A for AC-3 motor switching
- Switching capacity for resistive loads up to 20A (AC-1)
- 1 normally open auxiliary contact
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Compact size for optimized cabinet space
- Compatible with Legrand CTX3 mini auxiliaries and accessories
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Tertiary and industrial installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 4 kW (415V)
- Use in motor control and protection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Contactor CTX3 Mini 3P 9A 1NO 230V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
