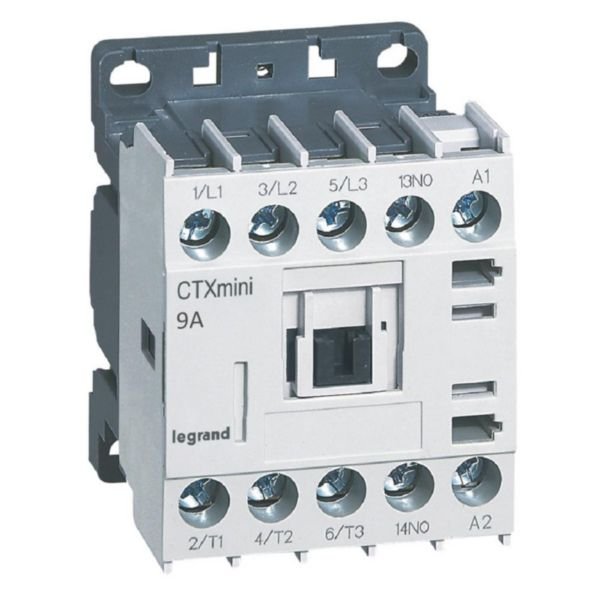

Contactor CTX3 Mini 3P 9A 1NO 24V AC | 12 Million Mechanical Operations | Compact Size | @EA of 1 | by Legrand
The Contactor CTX3 Mini 3P 9A 1NO 24V AC is designed for efficient motor control in industrial and tertiary applications. With a rated current of 9A for 3-phase motors and a compact design, it optimizes cabinet space while ensuring reliable performance. Ideal for switching inductive and non-inductive loads, this contactor features screw terminals for easy installation and can endure up to 12 million mechanical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 20.4-26.4 V
- Number of main contacts (normally open): 3
- Number of auxiliary contacts (normally open): 1
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated operation power at AC-3, 400 V: 4 kW
- Type of electrical connection: Cable clamp
- Number of normally closed contacts as main contact: 0
- Number of normally closed auxiliary contacts: 0
- Number of operation cycles (AC-3) per hour: 1800
- Endurance: up to 12 million mechanical and 1 million electrical operations
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.15 kg
Key Features
- Rated current 9A (AC-3) for 3-phase motor switching
- Switching capacity for resistive loads up to 20A (AC-1)
- 1 normally open auxiliary contact
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Can be equipped with Legrand CTX3 mini auxiliaries and accessories
- Compact size for optimized cabinet space
- Mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
- Installation by a qualified electrician is recommended. Follow all safety instructions and use only Legrand branded accessories.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 4 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with substance-restriction compliance for environmental safety
- Manufactured through an environmentally conscious process
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Contactor CTX3 Mini 3P 9A 1NO 24V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
