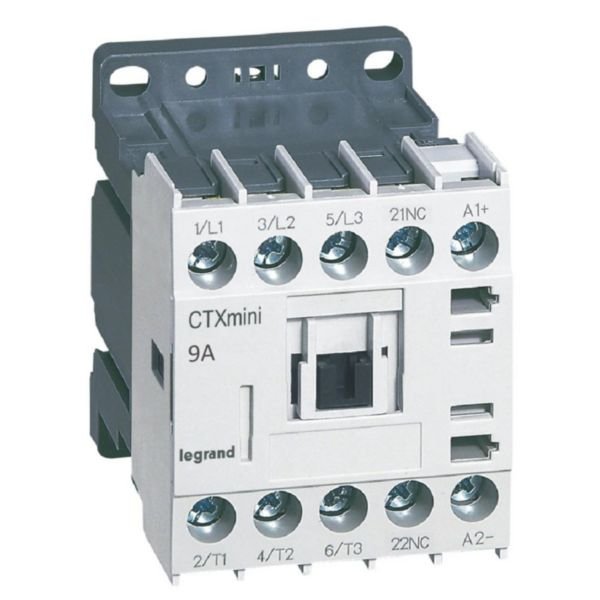

Contactor CTX3 Mini 3P 9A 24V DC | 3 Normally Open Contacts | 1 NC Auxiliary | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 417031
$85.70 List price: $106.80
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 9A 24V DC is designed for efficient motor control in industrial and tertiary applications. With 3 normally open contacts and 1 normally closed auxiliary contact, it supports a rated operation current of 9A at AC-3, ensuring reliable performance. Built for durability, it offers up to 12 million mechanical operations, making it a robust choice for switching 3-phase motors and inductive loads.

Product Name/Title: Contactor CTX3 Mini 3P 9A 24V DC | 3 Normally Open Contacts | 1 NC Auxiliary | @EA of 1 | by Legrand

Brand: Legrand

SKU: 417031

Alternatively Known As: Mini Contactor 3P 9A 24V DC, Legrand CTX3 Motor Contactor, 3 Pole Contactor 9 Amp DC Coil

Technical Specifications
  • Rated control supply voltage: 20.4-26.4 V DC
  • Number of normally open main contacts: 3
  • Number of normally closed auxiliary contacts: 1
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 9 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Type of electrical connection: Cable clamp
  • Suitable for distribution board installation
  • Endurance: 12 million mechanical operations, 1 million electrical operations
  • Operation cycles per hour (AC-3): 1800
  • Dimensions (H x L x W): 70mm x 60mm x 45mm
  • Weight: 0.15 kg
Key Features
  • Rated control supply voltage DC 20.4-26.4 V
  • 3 normally open main contacts and 1 normally closed auxiliary contact
  • Rated operation current 9A at AC-3, 400 V and 20A at AC-1, 400 V
  • Endurance up to 12 million mechanical operations and 1 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Screw terminals capacity: Power 2 x 1.25mm² to 2mm², Coil 0.75mm² to 2.5mm², Aux. Circuit 0.75mm² to 2.5mm²
  • Can be equipped with all Legrand CTX3 mini auxiliaries and accessories
  • Installation on 35 mm 'top hat' mounting rail (IEC 60715) or mounting plate
  • Reduced size to optimize cabinet space
Professional Installation Requirements
  • Installation should be performed by a qualified electrician following local electrical codes and standards.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 4 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.

Available Now

The Legrand Contactor CTX3 Mini 3P 9A 1NC 24V DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
