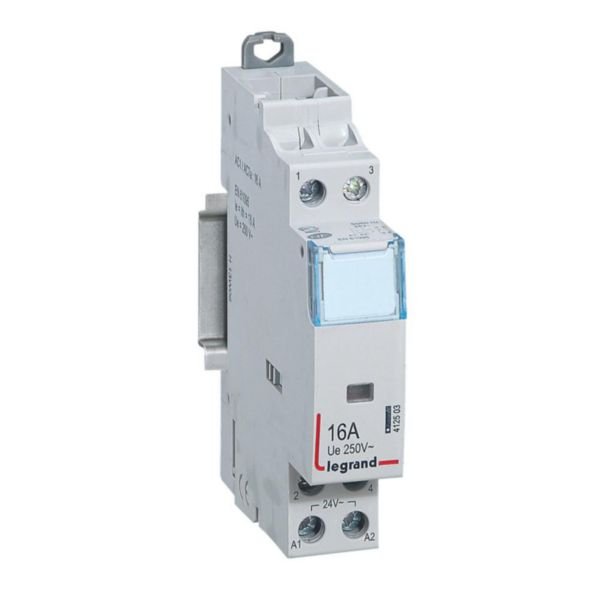

Contactor CX³ 2 Pole | 16A Rated | 250V AC | 24V Coil | @Each of 1 | by Legrand
The Contactor CX³ 2 Pole is designed for reliable control in industrial applications, featuring a 16A rating at 250V AC and a 24V AC coil. Ideal for control panels and automation systems, this compact contactor includes one normally open and one normally closed contact, ensuring versatility and efficiency in operation. Its modular design allows for easy DIN rail mounting, making installation straightforward for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CX³ 2 Pole | 16A Rated | 250V AC | 24V Coil | @Each of 1 | by Legrand
Brand: Legrand
SKU: 412503
Alternatively Known As: Legrand CX3 Contactor, 2 Pole Contactor 16A, 24V Coil Contactor, Modular Contactor CX³
Technical Specifications
- Utilization category: AC7a or AC1 - 16A
- Rated operating voltage: 250V AC
- Rated operating current: 16A
- Rated excitation voltage: 20-26V AC
- Number of normally open contacts: 1
- Number of normally closed contacts: 1
- Max incandescent lamp load: 2000W
- Max fluorescent lamp load: 1300 VA (single circuit), 1400 VA (duo circuit), 600 VA (parallel compensated)
- Width: 17.8 mm (1 module)
- Height: 94.9 mm
- Depth: 67.3 mm
- Degree of protection: IP2X
- Equipped with two DIN rail clamps for easy clipping
- Label holder for circuit identification
- Slider for hand switch included
- Dimensions (H x L x W): 95mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- 2 pole contactor with 1 normally open (NO) and 1 normally closed (NC) contact
- Rated operating current of 16A at 250V AC
- 24V AC coil voltage
- Compact design, 1 module wide for easy DIN rail mounting
- Fitted with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Slider for hand switch operation
- Degree of protection IP2X
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Industrial control panels
- Switchboards and power cabinets
- Control and signalling circuits
- Automation systems requiring compact contactors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Compact design reduces material usage and waste
- Energy efficient coil reduces power consumption during operation
- Durable construction extends product lifespan, reducing replacement frequency
Warranty Information
Warranty provided by Legrand as per standard terms and conditions, typically 1-2 years against manufacturing defects.
Available Now
The Legrand Contactor CX³ 2 Pole 16A 250V AC with 24V AC Coil is available for immediate purchase, ideal for industrial and commercial control panel applications.
