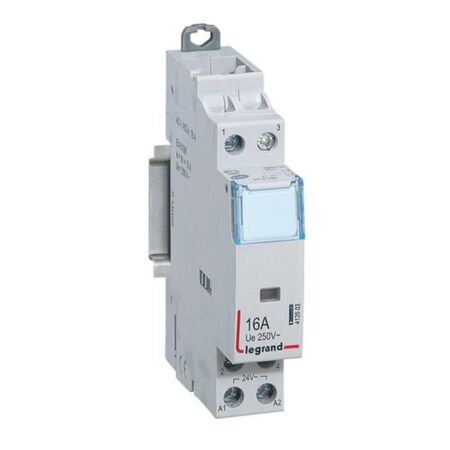

Contactor CX³ 2 Pole 16A Rated 250V AC Legrand

BRAND: Legrand
SKU: 412503
$70.00 List price: $87.30
1 EA ($70.00 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Contactor CX³ 2 Pole is designed for reliable control in industrial applications, featuring a 16A rating at 250V AC and a 24V AC coil.
Technical Specifications
  • Utilization category: AC7a or AC1 - 16A
  • Rated operating voltage: 250V AC
  • Rated operating current: 16A
  • Rated excitation voltage: 20-26V AC
  • Number of normally open contacts: 1
  • Number of normally closed contacts: 1
  • Max incandescent lamp load: 2000W
  • Max fluorescent lamp load: 1300 VA (single circuit), 1400 VA (duo circuit), 600 VA (parallel compensated)
  • Width: 17.8 mm (1 module)
  • Height: 94.9 mm
  • Depth: 67.3 mm
  • Degree of protection: IP2X
  • Equipped with two DIN rail clamps for easy clipping
  • Label holder for circuit identification
  • Slider for hand switch included
  • Dimensions (H x L x W): 95mm x 67mm x 18mm
  • Weight: 0.1 kg
Key Features
  • 2 pole contactor with 1 normally open (NO) and 1 normally closed (NC) contact
  • Rated operating current of 16A at 250V AC
  • 24V AC coil voltage
  • Compact design, 1 module wide for easy DIN rail mounting
  • Fitted with two DIN rail clamps for easy installation
  • Label holder for clear circuit identification
  • Slider for hand switch operation
  • Degree of protection IP2X
Professional Installation Requirements
  • Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
  • Industrial control panels
  • Switchboards and power cabinets
  • Control and signalling circuits
  • Automation systems requiring compact contactors
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Compact design reduces material usage and waste
  • Energy efficient coil reduces power consumption during operation
  • Durable construction extends product lifespan, reducing replacement frequency
Warranty Information

Warranty provided by Legrand as per standard terms and conditions, typically 1-2 years against manufacturing defects.

Available Now

The Legrand Contactor CX³ 2 Pole 16A 250V AC with 24V AC Coil is available for immediate purchase, ideal for industrial and commercial control panel applications.

F01332FR-04 (F01332FR-04.pdf, 674 Kb) [Download]

F01332EN-04 (F01332EN-04.pdf, 684 Kb) [Download]

ex223001_0095 (ex223001_0095.pdf, 49 Kb) [Download]

ex223001_0094 (ex223001_0094.pdf, 60 Kb) [Download]

LGRP-00980-V02.01-FR (LGRP-00980-V02.01-FR.pdf, 605 Kb) [Download]

LGRP-00980-V02.01-EN (LGRP-00980-V02.01-EN.pdf, 615 Kb) [Download]
