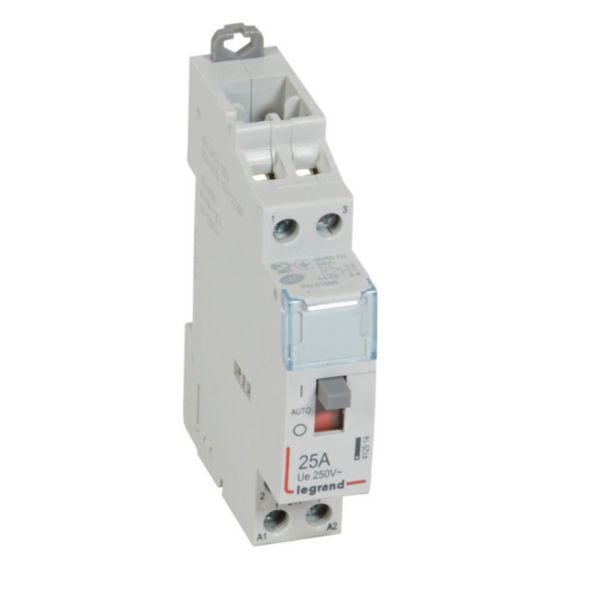

Contactor CX³ 2 Pole 25A 250V | 24V Coil & Front Face Handle | Compact Design | @EA of 1 | by Legrand
The Contactor CX³ 2 Pole 25A 250V is designed for reliable control in industrial applications, featuring a 24V AC coil and a convenient front face handle for manual operation. Ideal for switchboards and automation systems, this compact contactor ensures efficient performance with a rated operating current of 25A and IP2X protection, making it perfect for various control and signaling circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CX³ 2 Pole 25A 250V | 24V Coil & Front Face Handle | Compact Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412514
Alternatively Known As: Legrand CX3 Contactor 2 Pole 25A, Legrand 2 Pole Contactor with Handle, CX³ 25A Contactor, Legrand 24V Coil Contactor
Technical Specifications
- Utilization category: AC7a or AC1 - 25A / AC7b or AC3 - 10A
- Rated operating voltage: 250V AC
- Rated operation current: 25A
- Rated excitation voltage: 20-26V AC
- Number of normally open contacts: 2
- Number of normally closed contacts: 0
- Max incandescent lamp load: 3000W
- Max fluorescent lamp load: 2100 VA
- Max fluorescent lamp load (Duo circuit): 2200 VA
- Max fluorescent lamp load (parallel compensated): 1000 VA
- Slider for hand switch: Yes
- Width in modular spacings: 1
- Built-in depth: 44 mm
- Degree of protection: IP2X
- Dimensions (H x L x W): 95mm x 73mm x 18mm
- Weight: 0.1 kg
Key Features
- 2 pole contactor with 2 normally open (NO) contacts
- Rated operating current of 25A at 250V AC
- 24V AC coil voltage
- Front face handle for manual control and testing
- Compact design, 1 module wide
- Equipped with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Permanent ON or OFF without automatic reset
- IP2X degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician following all relevant safety and installation standards to avoid risk of electric shock or fire.
Applications
- Industrial control panels
- Switchboards and power cabinets
- Control and signalling circuits
- Automation systems requiring compact contactors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Compact design reduces material usage and waste
- Energy efficient coil operation minimizes power consumption
- Durable construction extends product lifespan reducing replacement frequency
Warranty Information
Warranty provided by Legrand as per standard terms and conditions. Installation by qualified personnel recommended to maintain warranty validity.
Available Now
The Legrand Contactor CX³ 2 Pole 25A 250V with front face handle and 24V coil is available for immediate purchase. Ideal for use in industrial control panels, switchboards, and automation systems.
