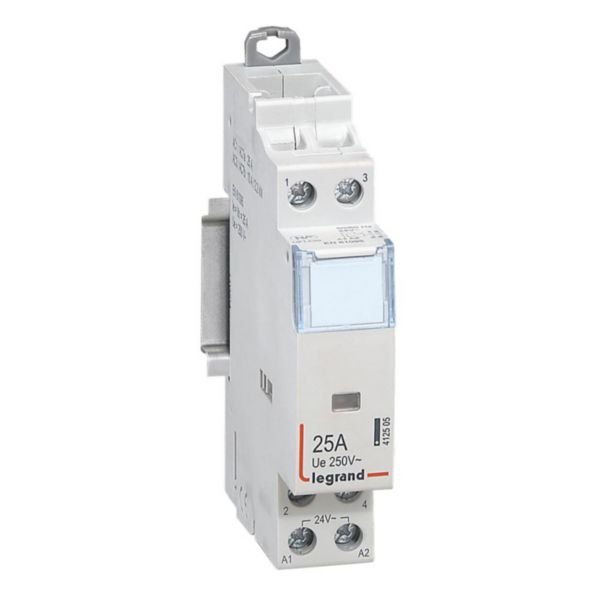

Contactor CX³ 2 Pole 25A | 250V AC | 2NO Contacts & 24V Coil | @EA of 1 | by Legrand
The Contactor CX³ 2 Pole 25A is designed for reliable control in industrial applications, featuring a 250V AC rating and 2 normally open contacts with a 24V AC coil. Its compact design, fitting within a single module, makes it ideal for automation systems and motor control circuits, ensuring efficient operation and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CX³ 2 Pole 25A | 250V AC | 2NO Contacts & 24V Coil | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412505
Alternatively Known As: Legrand CX3 Contactor 2 Pole 25A, Legrand 2NO Contactor 24V Coil, Legrand Modular Contactor CX³
Technical Specifications
- Rated operating voltage: 250 V AC
- Rated operating current: 25 A
- Rated excitation voltage: 20-26 V AC
- Number of normally open contacts: 2
- Number of normally closed contacts: 0
- Max incandescent lamp load: 3000 W
- Max fluorescent lamp load: 2100 VA
- Max fluorescent lamp load (Duo circuit): 2200 VA
- Max fluorescent lamp load (parallel compensated): 1000 VA
- Built-in depth: 44 mm
- Width: 17.8 mm
- Height: 94.9 mm
- Depth: 67.3 mm
- Degree of protection: IP2X
- Dimensions (H x L x W): 95mm x 67mm x 18mm
- Weight: 0.1 kg
Key Features
- Utilization category: AC7a or AC1 - 25A / AC7b or AC3 - 10A
- Equipped with 2 normally open (NO) contacts
- 24V AC coil voltage
- Compact design: 1 module wide
- Fitted with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Slider for hand switch operation
- Degree of protection: IP2X
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Industrial control panels
- Motor control circuits
- Lighting control systems
- Automation systems requiring compact contactors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Compact design reduces material usage and waste
- Energy efficient coil reduces power consumption during operation
Warranty Information
Warranty provided by Legrand as per standard terms and conditions. Installation by qualified personnel recommended to maintain warranty validity.
Available Now
The Legrand Contactor CX³ 2 Pole 25A 250V AC with 2NO contacts and 24V AC coil is available for immediate purchase. Ideal for industrial and automation control applications requiring compact and reliable contactors.
