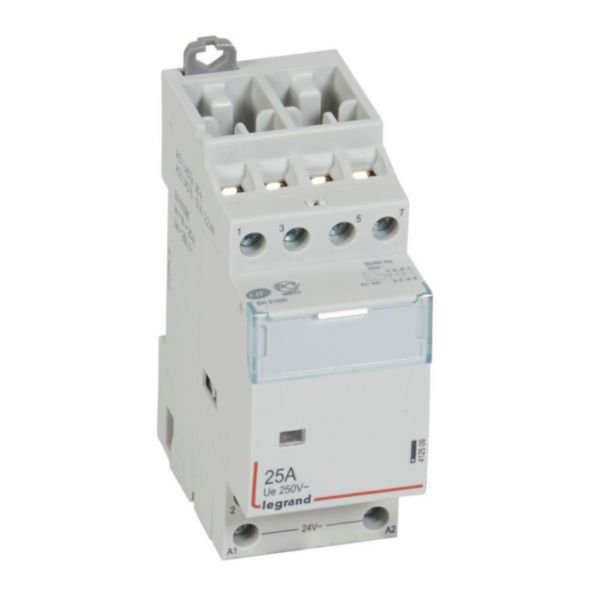

Contactor CX³ 4 Pole | 25A Rated | 400V AC | 2NC + 2NO Contacts | @EA of 1 | by Legrand
The Contactor CX³ 4 Pole is designed for reliable industrial control, featuring a 25A rated current and 400V AC operation. With 2 normally closed and 2 normally open contacts, plus a 24V AC coil, it's perfect for motor control and automation systems. Built for easy DIN rail mounting and equipped with an IP2X protection rating, this contactor ensures safety and efficiency in your electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CX³ 4 Pole | 25A Rated | 400V AC | 2NC + 2NO Contacts | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412509
Alternatively Known As: Legrand CX3 Contactor, 4 Pole Contactor 25A, 24V Coil Contactor, Industrial Contactor
Technical Specifications
- Utilization category: AC7a or AC1 - 25A
- Rated operating voltage: 250-400 V AC
- Rated operating current: 25 A
- Rated excitation voltage: 20-26 V AC
- Number of normally open contacts: 2
- Number of normally closed contacts: 2
- Max incandescent lamp load: 3000 W
- Max fluorescent lamp load: 2100 VA
- Max fluorescent lamp load (Duo circuit): 2200 VA
- Max fluorescent lamp load (parallel compensated): 1000 VA
- Width: 35.6 mm (2 modular spacings)
- Height: 94.9 mm
- Depth: 67.3 mm
- Degree of protection: IP2X
- Additional equipment possible
- Slider for hand switch included
- Dimensions (H x L x W): 95mm x 67mm x 36mm
- Weight: 0.15 kg
Key Features
- 4 pole contactor with 2 normally closed (NC) and 2 normally open (NO) contacts
- Rated operating current of 25A at 400V AC
- 24V AC coil voltage
- Easy DIN rail mounting with two clamps for secure installation
- Label holder for clear circuit identification
- Slider for hand switch operation
- IP2X degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Industrial control panels
- Switchboards and power cabinets
- Motor control and automation systems
- Lighting and heating control circuits
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed for energy-efficient switching to reduce power loss
- Durable construction reduces waste and replacement frequency
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Contactor CX³ 4 Pole 25A 400V with 2NC + 2NO contacts and 24V coil is available for immediate purchase. Ideal for industrial and commercial electrical control applications.
