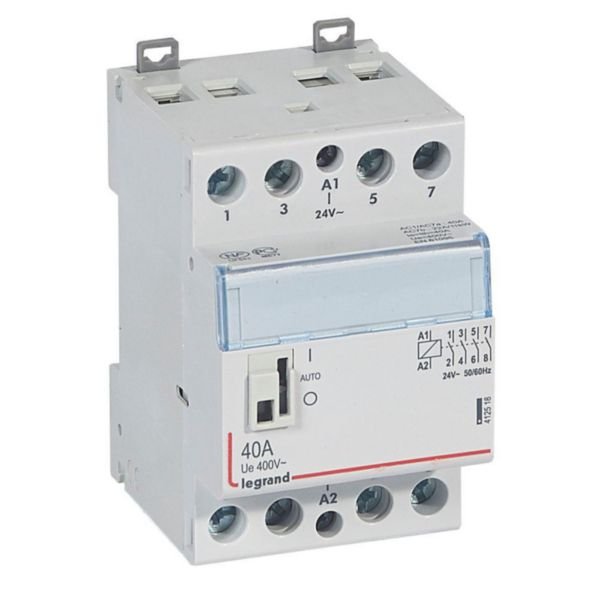

Contactor CX³ 4 Pole 40A | 400V AC | 24V Coil & Front Face Handle | @EA of 1 | by Legrand
The Contactor CX³ 4 Pole 40A is designed for reliable industrial motor control, featuring a 400V AC rating and a 24V coil for efficient operation. With four normally open contacts and a convenient front face handle, it allows for direct on-site control, making it ideal for lighting control circuits and heating systems. Built for durability and energy efficiency, this contactor is perfect for professional installations in commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CX³ 4 Pole 40A | 400V AC | 24V Coil & Front Face Handle | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412518
Alternatively Known As: Legrand CX3 Contactor 4 Pole 40A, Legrand 4NO Contactor 24V Coil, Legrand Motor Contactor CX³
Technical Specifications
- Utilization category: AC7a or AC1 - 40A / AC7b or AC3 - 22A
- Rated operating voltage: 400V AC
- Rated operating current: 40A
- Rated excitation voltage: 20-26V AC
- Number of normally open contacts: 4
- Number of normally closed contacts: 0
- Max incandescent lamp load: 5000W
- Max fluorescent lamp load: 3100 VA
- Max fluorescent lamp load (Duo circuit): 3400 VA
- Max fluorescent lamp load (parallel compensated): 1400 VA
- Slider for hand switch included
- Width: 3 modular spacings
- Built-in depth: 44 mm
- Degree of protection: IP2X
- Dimensions (H x L x W): 94mm x 53.4mm x 68mm
- Weight: 0.3 kg
Key Features
- 4 normally open (NO) contacts
- Front face handle for direct on-site control
- Rated operating current: 40A
- Rated operating voltage: 400V AC
- 24V AC coil voltage
- Equipped with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Permanent ON or OFF without automatic reset
- IP2X degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician following all relevant safety and installation standards to avoid risk of electric shock or fire.
Applications
- Industrial motor control
- Lighting control circuits
- Heating and ventilation systems
- Switchboards and power cabinets control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed for energy-efficient switching to reduce power loss
- Durable construction reduces waste and replacement frequency
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Contactor CX³ 4 Pole 40A 400V with front face handle and 24V coil is available for immediate purchase, ideal for industrial and commercial electrical control applications.
