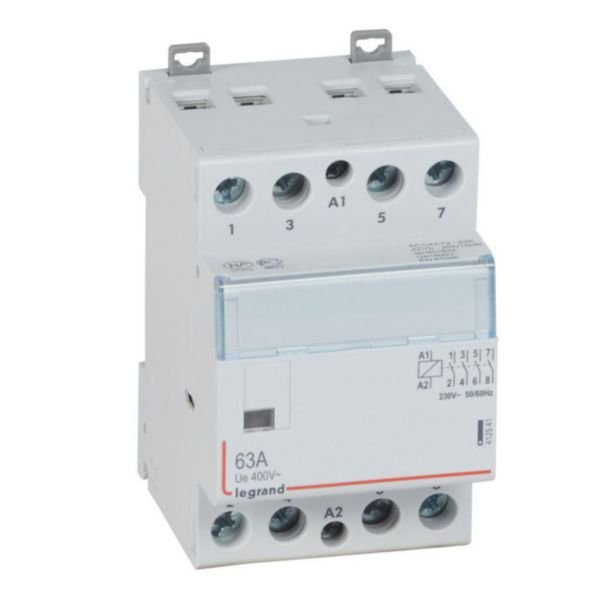

Contactor CX³ 4 Pole | 63A Rated | 400V AC | 230V Coil | @EA of 1 | by Legrand
The Contactor CX³ 4 Pole is designed for reliable industrial motor control, featuring a 63A rated current and 400V AC operating voltage. With 4 normally open contacts and a 230V coil, it's perfect for switchboards and power cabinets. Built for durability and energy efficiency, this contactor ensures optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Utilization category: AC7a or AC1 - 63A / AC7b or AC3 - 30A
- Rated operating voltage: 400V AC
- Rated operation current: 63A
- Rated excitation voltage: 195-253V AC
- Number of normally open contacts: 4
- Number of normally closed contacts: 0
- Max incandescent lamp load: 8000W
- Max fluorescent lamp load: 4700 VA
- Max fluorescent lamp load (Duo circuit): 5000 VA
- Max fluorescent lamp load (parallel compensated): 1700 VA
- Slider for hand switch: Yes
- Width in modular spacings: 3
- Built-in depth: 44 mm
- Degree of protection: IP2X
- Dimensions (H x L x W): 94mm x 53.4mm x 68mm
- Weight: 0.3 kg
Key Features
- 4 normally open contacts (4NO)
- Rated operating current: 63A
- Rated operating voltage: 400V AC
- 230V AC coil voltage
- Can be equipped with auxiliaries
- Easy DIN rail mounting with two clamps
- Slider for hand switch included
- Degree of protection: IP2X
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Industrial motor control
- Switchboards and power cabinets
- Control and signalling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for energy-efficient switching to reduce power loss
- Durable construction reduces need for frequent replacements
Warranty Information
Legrand offers a standard warranty against manufacturing defects; please refer to official documentation for warranty period details.
Available Now
The Legrand Contactor CX³ 4 Pole 63A 400V with 230V coil is available for immediate purchase, ideal for industrial and commercial electrical control applications.
