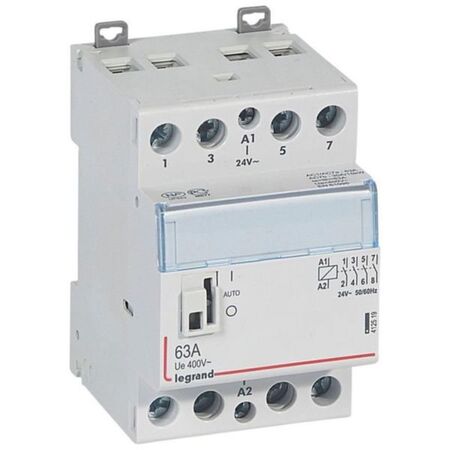

Contactor CX³ 4 Pole | 63A Rated | 400V AC | 24V Coil | @Each of 1 | by Legrand
The Contactor CX³ 4 Pole is designed for reliable industrial motor control, featuring a 63A rated operating current at 400V AC and a 24V AC coil voltage. With four normally open contacts and a front face handle for direct control, it's perfect for switchboards, power cabinets, and automation systems. Built for durability and energy efficiency, this contactor ensures optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CX³ 4 Pole | 63A Rated | 400V AC | 24V Coil | @Each of 1 | by Legrand
Brand: Legrand
SKU: 412519
Alternatively Known As: Legrand CX3 Contactor, 4 Pole Contactor 63A, 24V Coil Contactor, Industrial Contactor 400V
Technical Specifications
- Utilization category: AC7a or AC1 - 63A / AC7b or AC3 - 30A
- Rated operating voltage: 400 V AC
- Rated operation current: 63 A
- Rated excitation voltage: 20-26 V AC
- Number of normally open contacts: 4
- Number of normally closed contacts: 0
- Max incandescent lamp load: 8000 W
- Max fluorescent lamp load: 4700 VA
- Max fluorescent lamp load (Duo circuit): 5000 VA
- Max fluorescent lamp load (parallel compensated): 1700 VA
- Slider for hand switch: Yes
- Width in modular spacings: 3
- Built-in depth: 44 mm
- Degree of protection: IP2X
- Equipped with front face handle and label holder
- Dimensions (H x L x W): 94mm x 53.4mm x 68mm
- Weight: 0.3 kg
Key Features
- 4 normally open (NO) contacts
- Front face handle for direct on-site control
- Rated operating current of 63A at 400V AC
- 24V AC coil voltage
- Equipped with two DIN rail clamps for easy installation
- Label holder for clear circuit identification
- Permanent ON or OFF without automatic reset
- IP2X degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to avoid risk of electric shock or fire.
Applications
- Industrial motor control
- Switchboards and power cabinets
- Control and signalling circuits
- Automation systems requiring 4-pole contactors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
- Energy efficient operation reduces power consumption in control circuits.
Warranty Information
Standard Legrand warranty applies. Warranty void if product is opened or repaired by unauthorized personnel.
Available Now
The Legrand Contactor CX³ 4 Pole 63A 400V with front face handle and 24V coil is available for immediate purchase. Ideal for industrial and commercial electrical control applications.
