Contactor Kit 220kW 3Pole | 24-60VDC Electronic Coil | 1NO 1NC Auxiliary by NHP
Contactor kit with 220kW power and 3 poles, featuring a 24-60VDC electronic coil and 1NO 1NC auxiliary contact—ideal for industrial motor control and commercial HVAC systems. Built for efficient power management and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

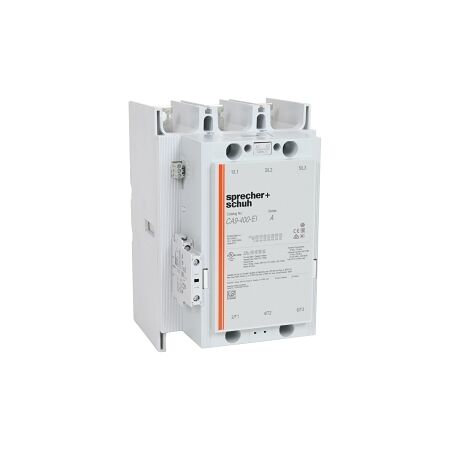

Product Name/Title: S+S CA9 Contactor Kit 220kW 3Pole 24 to 60VDC Electronic Coil 1NO 1NC Contact Auxiliary
Brand: NHP
SKU: CA9400EI1124WKIT
Alternatively Known As: CA9 Contactor, Power Contactor, AC Switching Contactor
Technical Specifications
- Number of normally open contacts: 3
- Number of normally closed contacts: 0
- Rated operation current at AC 3, 400 V: 400 A
- Rated operation power at AC 3, 400 V: 220 kW
- Rated operation current at AC 1, 400 V: 600 A
- Max rated operation voltage: 1000 V
- Rated control supply voltage: 24-60 VDC
- Power consumption DC coil pickup: 900 W
- Power consumption DC coil hold-in: 5 W
- Degree of protection: IP00
- Mounting method: Screw mounting
- Dimensions (H x L x W): 268mm x 216mm x 186mm
- Weight: 12 kg
Key Features
- 220 kW rated operation power with 3 poles.
- Electronic coil with a control supply voltage of 24 to 60 VDC.
- Includes 1 normally open and 1 normally closed auxiliary contact.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and automation systems
- Commercial: HVAC systems and large electrical installations
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient power management reduces energy consumption in industrial applications.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The S+S CA9 Contactor Kit 220kW is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.
Non-Returnable & Non-Cancellable
