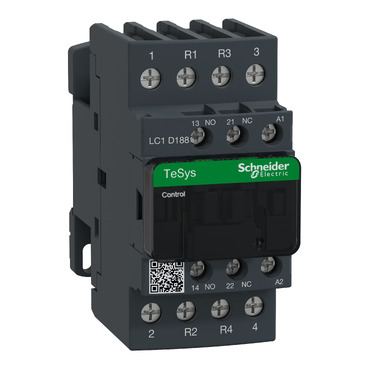

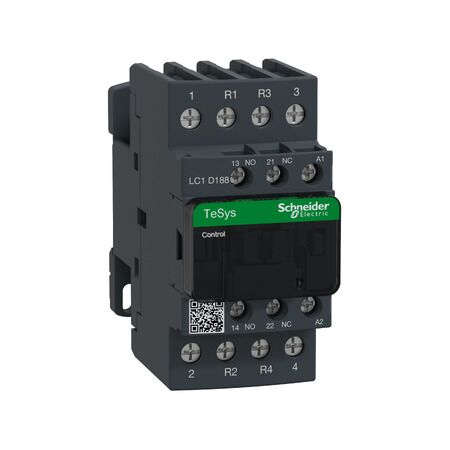

Contactor TeSys D 4-Pole 32A | 42V AC Coil | Compact DIN Rail Mount | @Pack of 1 | by Clipsal
The Contactor TeSys D is a reliable 4-pole contactor rated for 32A at 440V, featuring a 42V AC control coil. Perfect for industrial motor control and lighting circuits, this compact DIN rail mountable design ensures high electrical and mechanical endurance, making it ideal for commercial and industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor TeSys D 4-Pole 32A | 42V AC Coil | Compact DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1D188D7
Alternatively Known As: TeSys D Contactor, Schneider LC1D188D7, 4 Pole Contactor 32A, Industrial Contactor 42V Coil
Technical Specifications
- Type: TeSys D Contactor
- Poles: 4 (2 NO + 2 NC)
- Rated Operational Current: 32A (AC-1, up to 440V)
- Control Voltage: 42V AC 50/60Hz
- Rated Insulation Voltage: 690V
- Conventional Thermal Current: 32A
- Electrical Durability: 1.2 million cycles (AC-1)
- Mechanical Durability: 10 million cycles
- Mounting: DIN rail or screw
- Standards: IEC 60947-4-1, EN 60947-4-1
- Dimensions (H x L x W): 85mm x 95mm x 45mm
- Weight: 0.45 kg
Key Features
- 4-pole contactor (2 NO + 2 NC)
- AC-1 rated for up to 32A at 440V
- 42V AC control coil
- TeSys D series reliability
- Compact DIN rail mountable design
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Lighting circuits
- HVAC systems
- Pumping stations
- General power switching in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient switching reduces power losses
- Long operational life minimizes replacement waste
- RoHS compliant materials
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys D Contactor SCHLC1D188D7 is available for immediate purchase. Ideal for industrial and commercial power switching applications.
