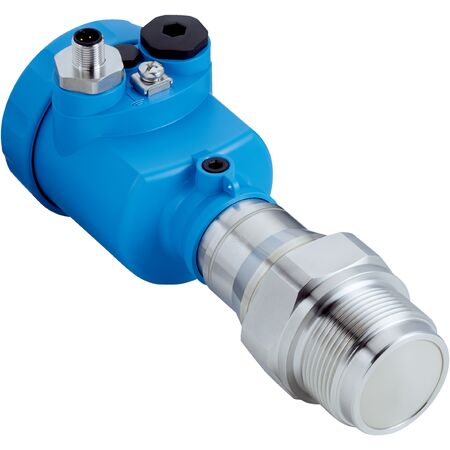

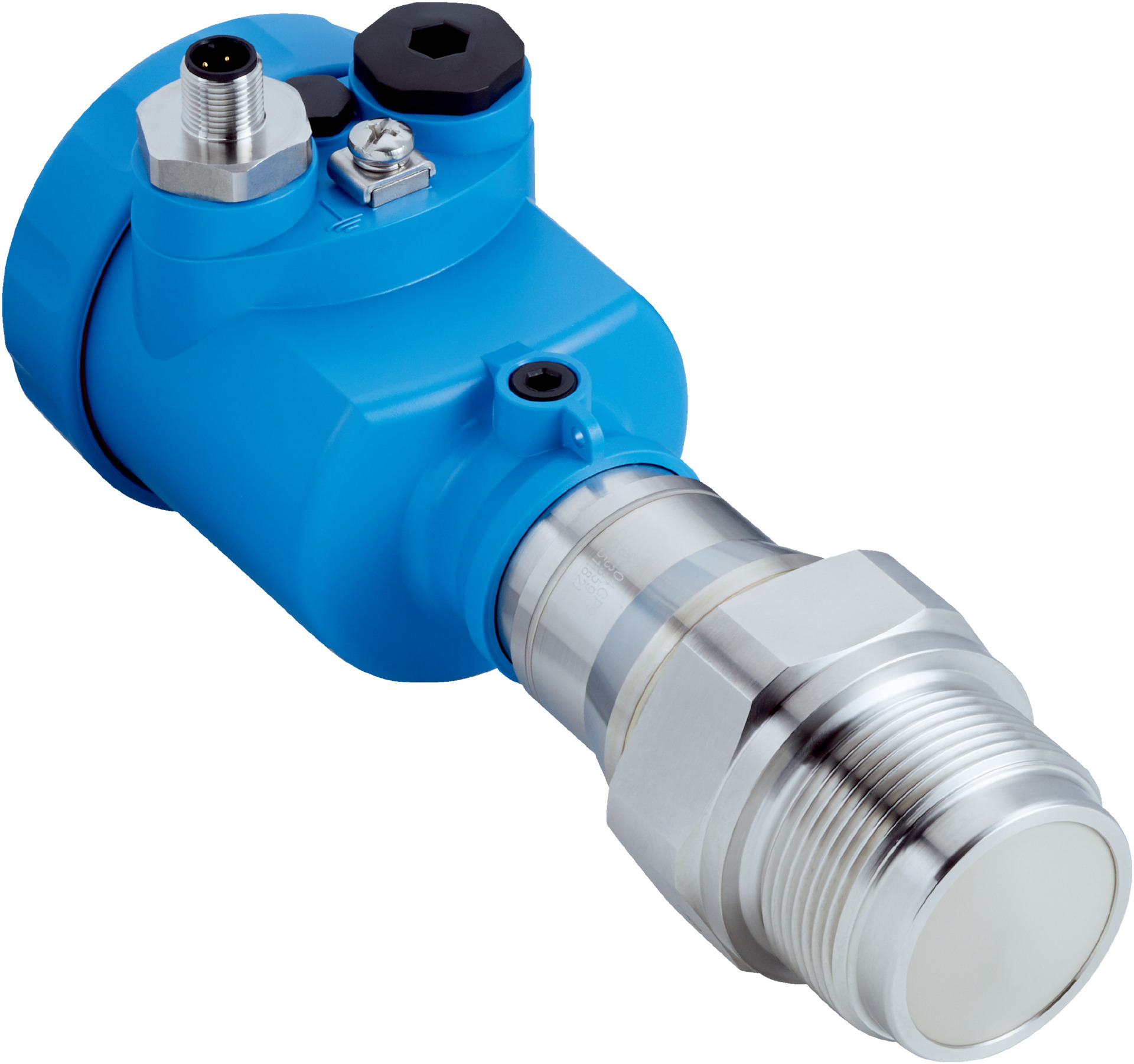

Continuous Bulk Solids Level Sensor | W-band Frequency | IP67 Protection | by SICK
The Continuous Bulk Solids Level Sensor is designed for precise level measurement in industrial processes, featuring a W-band frequency range of 75 to 85 GHz and an impressive measuring range of up to 120 m. With an accuracy of ≤ 5 mm and robust IP67 protection, this sensor is ideal for harsh environments and ATEX certified applications, ensuring reliable performance in bulk solids monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement type: Continuous level measurement of bulk solids
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 120 m, recommended up to 20 m in thread version
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar (-100 kPa to 2000 kPa)
- Process temperature: -40 °C to +200 °C
- Accuracy: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Supply voltage: 9 V DC to 30 V DC
- Output signal: 4 mA to 20 mA / HART
- Protection class: I (IEC 61010-1)
- Connection type: M20 x 1.5 / cable gland PA black (ø 5 mm - 9 mm)
- Enclosure rating: IP67
- EMC: EN 61326-1
- Overvoltage category: III (IEC 61010-1)
- Housing material: Aluminum die cast AlSi10Mg, powder-coated
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Dimensions (H x L x W): 150mm x 150mm x 60mm
- Weight: 2 kg
Key Features
- Continuous measurement of bulk solids with high accuracy (≤ 5 mm)
- Thread with integrated horn antenna made from PEEK for reliable sensing
- Frequency band: W-band (75 to 85 GHz) with measuring range up to 120 m
- Process pressure range from -1 bar to 20 bar and temperature range from -40 °C to +200 °C
- ATEX II 1G, 1/2G, 2G Ex ia IIC T6 certified for hazardous environments
- HART communication interface with 4 mA to 20 mA output signal
- Robust aluminum die cast housing with IP67 protection rating
- Display and pushbutton operation for easy control and configuration
- Short-circuit protection and isolation for electrical safety
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards.
Applications
- Continuous level measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures up to 20 bar
- Ideal for applications requiring ATEX certified equipment in hazardous areas
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable materials and robust design reduce waste and replacement frequency
- Energy-efficient operation with low power consumption
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBR-ACTTCBMHKAX Continuous Bulk Solids Level Sensor is available for immediate purchase. Ideal for industrial applications requiring precise and reliable level measurement in bulk solids.
