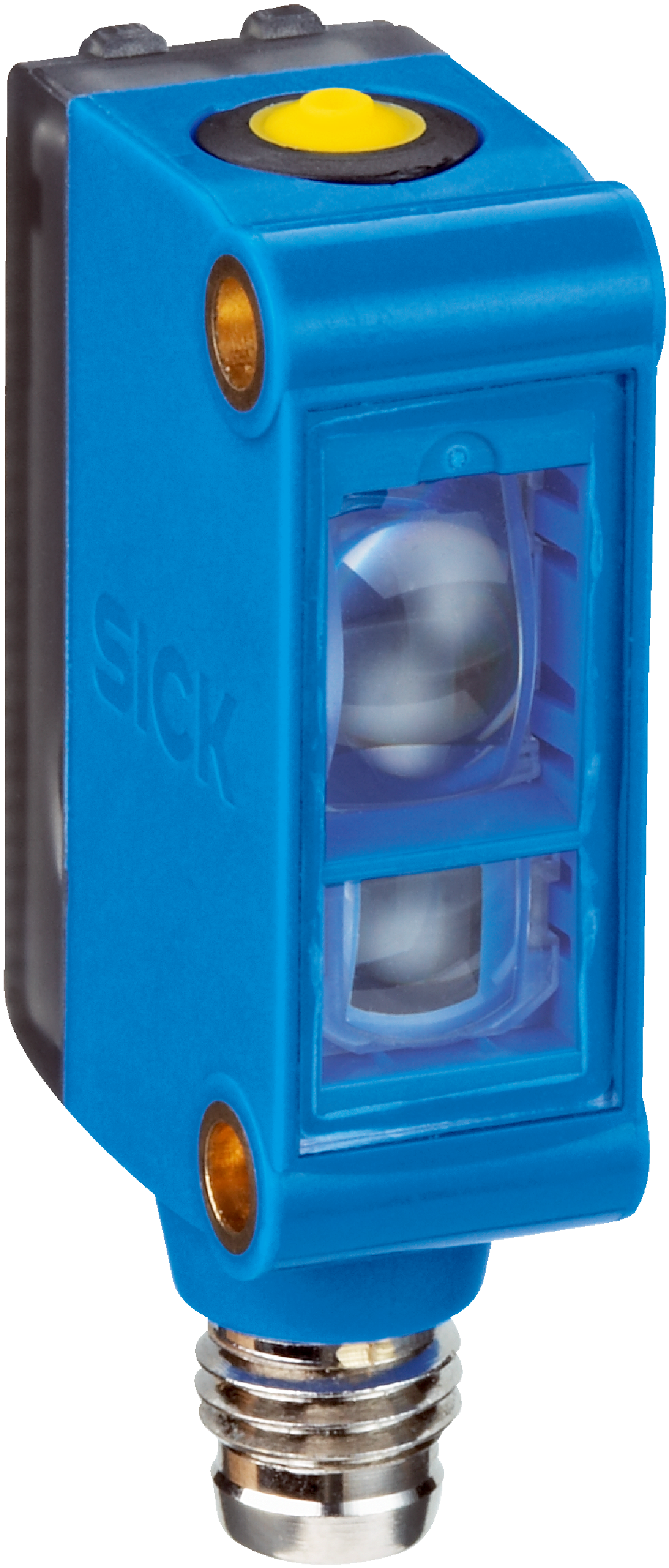

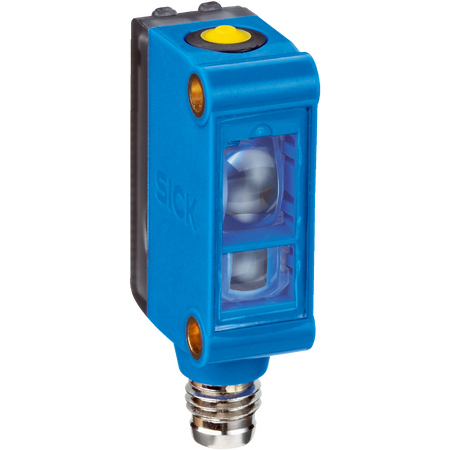

Contrast Sensor KTM-WP11181P | LED RGB Light Source | IP67 Rated | 15 kHz Switching Frequency | by SICK
The Contrast Sensor KTM-WP11181P features a compact design with an LED RGB light source, making it ideal for industrial automation and quality control applications. With a sensing distance of up to 12.5 mm and a high switching frequency of 15 kHz, this sensor ensures precise object detection and material sorting. Its IP67 rating provides excellent protection against dust and water, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Contrast sensor, RGB contrast sensor, industrial contrast detector, SICK contrast sensor KTM-WP11181P
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Sensing distance: ≤ 12.5 mm with ±3 mm tolerance
- Output: PNP switching output, max 50 mA
- Protection class: III
- Enclosure rating: IP67
- Housing material: ABS
- Optics material: PMMA
- Connection: Male connector M8, 4-pin
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design for compact installation
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Light/dark switching mode with PNP output
- IP67 rated enclosure for dust and water protection
- Teach-in button for easy adjustment and calibration
- High switching frequency of 15 kHz and fast response time of 32 µs
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Material sorting and processing
- Robotics and machine vision systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable ABS and PMMA materials reduce waste through long product life
- IP67 rating ensures protection against environmental contaminants, reducing failure rates
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WP11181P Contrast Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
