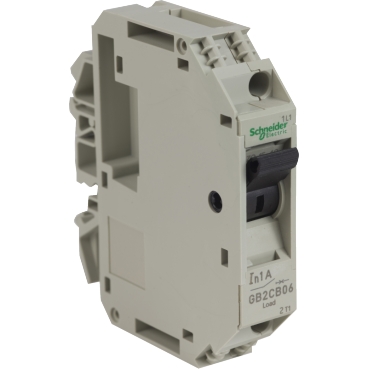

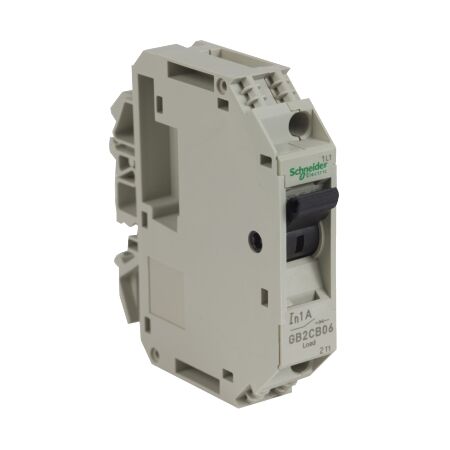

Control Circuit Breaker | 6A Rated Current | 6kA Breaking Capacity | DIN Rail Mount | @Pack of 1 | by Clipsal
Control Circuit Breaker designed for reliable protection of control circuits, featuring a 6A rated current and a high breaking capacity of 6kA. Its compact DIN rail mount design ensures quick and easy installation, making it ideal for industrial control panels, automation systems, and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Control Circuit Breaker | 6A Rated Current | 6kA Breaking Capacity | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHGB2CB06
Alternatively Known As: Miniature Circuit Breaker, MCB, Control MCB, Control Panel Breaker, DIN Rail Circuit Breaker
Technical Specifications
- Type: Control Circuit Breaker
- Model: SCHGB2CB06
- Rated current: 6A
- Rated voltage: 240/415V AC
- Breaking capacity: 6kA
- Mounting: DIN rail
- Number of poles: 1P
- Tripping curve: C
- Standards: IEC/EN 60898-1
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.15 kg
Key Features
- Provides reliable protection for control circuits
- Compact DIN rail mount design
- Quick and easy installation
- High breaking capacity for enhanced safety
- Suitable for use in a wide range of industrial and commercial applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Industrial control panels
- Automation systems
- Switchboards
- Machinery protection
- Commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHGB2CB06 Control Circuit Breaker is available for immediate purchase. Ideal for industrial and commercial control circuit protection.
