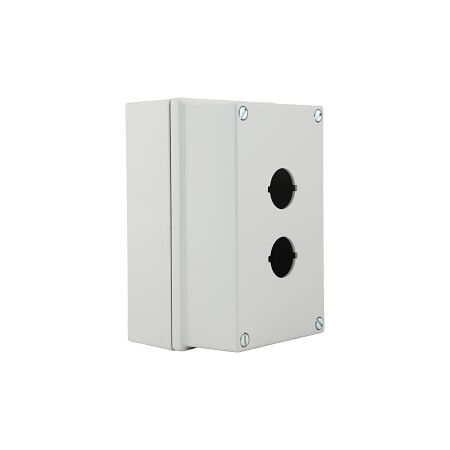

Control Circuit Enclosure 22.5mm | 2 Hole | IP66 Metal | Grey by NHP
Control circuit enclosure with 22.5mm operator control device compatibility and IP66 rating—ideal for industrial and commercial applications. Built for durability, with robust metal construction and protection against dust and water ingress.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Enclosure Metal 22.5mm 2 Hole Grey IP66
Brand: NHP
SKU: D72MM
Alternatively Known As: Control Circuit Enclosure, Operator Control Enclosure, Metal Enclosure IP66
Technical Specifications
- Number of push buttons: 2
- Number of key switches: 2
- Number of selector switches: 2
- Number of mushroom-shaped push buttons: 2
- Material housing: Metal
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Operating temperature: -25 to 70°C
- Dimensions (H x L x W): 137mm x 80.5mm x 85mm
- Weight: 1.5 kg
Key Features
- Designed for 22.5mm operator control devices.
- IP66 rated for protection against dust and water ingress.
- Robust metal construction for durability.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Control panels and machinery
- Commercial: Equipment housing in various environments
Standards & Compliance
- Complies with relevant Australian standards for electrical enclosures.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Enclosure Metal 22.5mm 2 Hole Grey IP66 is available now for immediate purchase. Ideal for industrial and commercial applications.
