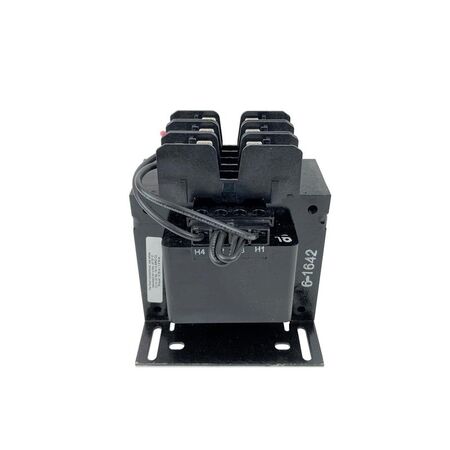

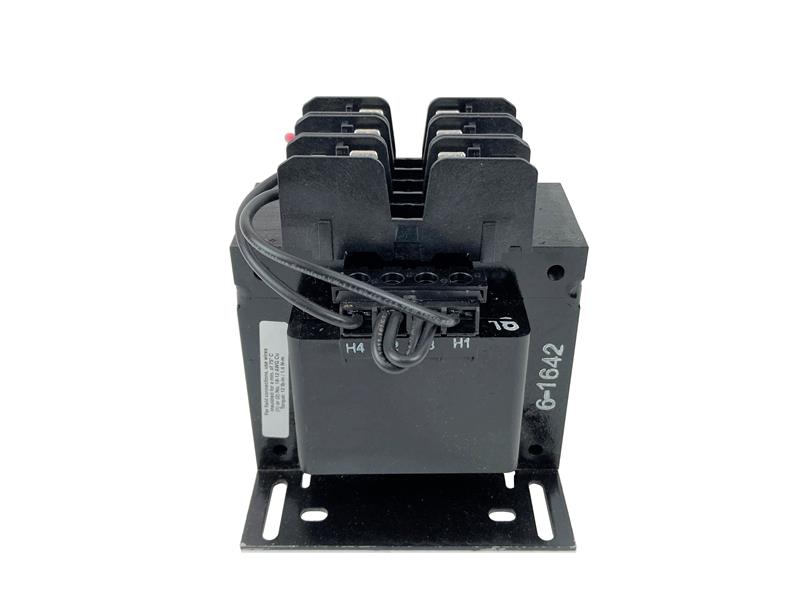

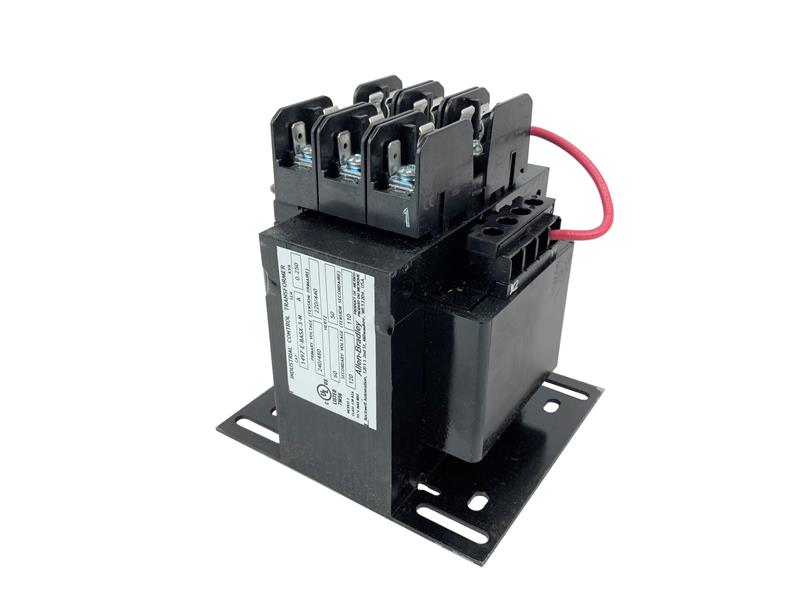

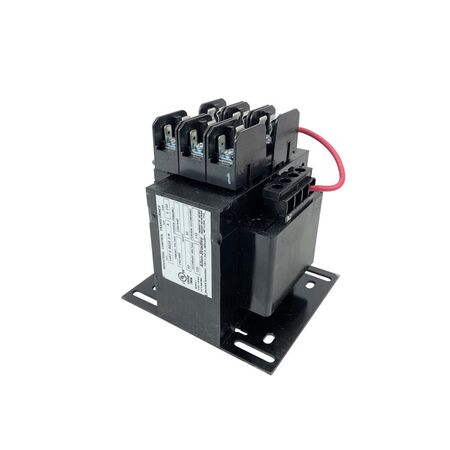

Product Name/Title: Allen-Bradley 1497EBASX3N Control Circuit Transformer
Brand: Allen-Bradley
SKU: 1497EBASX3N
Alternatively Known As: Control Transformer, Control Circuit Transformer, Industrial Control Transformer
Technical Specifications
- Primary Voltage: 240 to 480 VAC at 60 Hz, 220 to 440 VAC at 50 Hz
- Secondary Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
- Number of Primary Windings: 2
- Number of Secondary Windings: 1
- Rated Voltage: 250 VAC
- Dimensions (H x L x W): 120mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Control circuit transformer designed for reliable voltage transformation
- Primary voltage range: 240 to 480 VAC at 60 Hz, 220 to 440 VAC at 50 Hz
- Secondary voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
- Two primary windings and one secondary winding
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Control circuits in industrial automation
- Electrical control panels
- Machinery requiring voltage transformation for control circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by providing appropriate voltage levels for control circuits
- Reduces electrical losses in control systems
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1497EBASX3N Control Circuit Transformer is available now for immediate purchase. Ideal for industrial and commercial control circuit applications.
