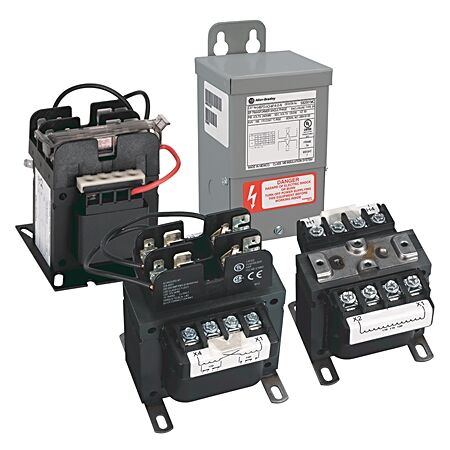

Control Circuit Transformer 500 VA | Dual Primary Voltage | 24V Secondary | by Allen-Bradley
The Control Circuit Transformer 500 VA is designed for reliable voltage transformation in industrial automation. With dual primary voltage options of 240/480V at 60Hz and 220/440V at 50Hz, it provides a secondary voltage of 24V at 50Hz or 26V at 60Hz. Ideal for powering control panels and devices, this transformer ensures efficient energy use and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power Rating: 500 VA
- Primary Voltage: 240/480V at 60Hz, 220/440V at 50Hz
- Secondary Voltage: 24V at 50Hz, 26V at 60Hz
- Configuration: 2 primary windings, 1 secondary winding
- Dimensions (H x L x W): 200mm x 150mm x 150mm
- Weight: 10 kg
Key Features
- 500 VA power rating
- Dual primary voltage: 240/480V (60Hz) and 220/440V (50Hz)
- Secondary voltage: 24V (50Hz) / 26V (60Hz)
- 2 primary windings and 1 secondary winding
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Control circuits in industrial automation
- Power supply for control panels
- Voltage transformation for control devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient voltage transformation reduces energy loss in control circuits
- Durable design extends product life, reducing waste
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
Available for immediate purchase, ideal for industrial and commercial control circuit applications.
