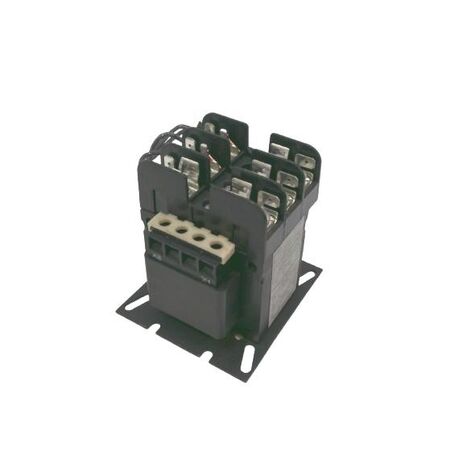

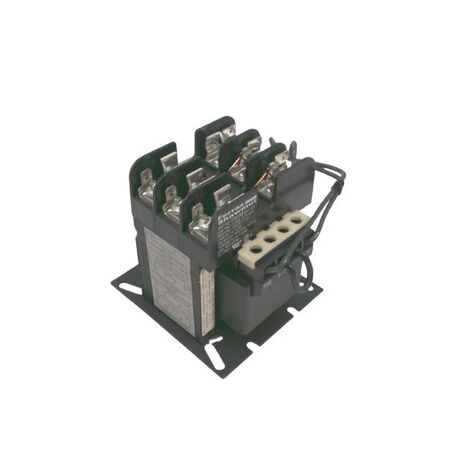

Control Circuit Transformer 80 VA | Dual Primary Voltage | 24V Secondary | by Allen-Bradley
The Control Circuit Transformer 80 VA is designed for industrial control circuits, featuring dual primary voltage options of 240/480V at 60Hz and 220/440V at 50Hz. With a secondary voltage of 24V, this transformer is perfect for electrical control panels and automation systems requiring reliable voltage transformation. Built for professional installation, it ensures compliance with safety standards and enhances energy efficiency in control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power Rating: 80 VA
- Primary Voltage: 240/480V at 60Hz, 220/440V at 50Hz
- Secondary Voltage: 24V at 50Hz, 26V at 60Hz
- Winding Configuration: 2 primary windings, 1 secondary winding
- Dimensions (H x L x W): 150mm x 130mm x 120mm
- Weight: 3.5 kg
Key Features
- 80 VA power rating
- Dual primary voltage: 240/480V (60Hz) and 220/440V (50Hz)
- Secondary voltage: 24V (50Hz) / 26V (60Hz)
- 2 primary windings and 1 secondary winding
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial control circuits
- Electrical control panels
- Automation systems requiring voltage transformation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency in control circuits by providing stable voltage transformation
- Reduces electrical losses in control systems
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 1497BBAJK3N Control Circuit Transformer 80 VA is available now for immediate purchase. Ideal for industrial and automation control applications.
