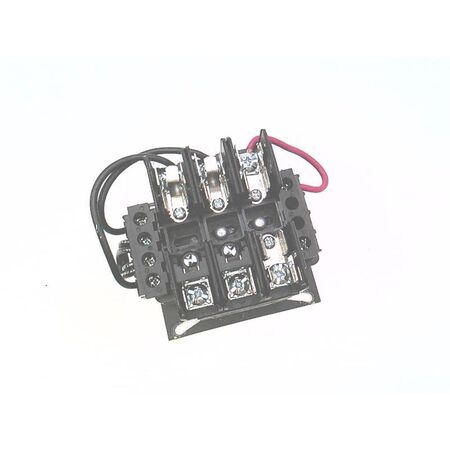

Control Circuit Transformer 80 VA | Single Phase | 240/480 VAC | by Allen-Bradley
The Control Circuit Transformer is designed for industrial applications, featuring an 80 VA power rating and dual primary voltage options of 240/480 VAC or 220/440 VAC. Ideal for automation systems and electrical control panels, it includes screw terminal connections and fuse blocks for enhanced safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power rating: 80 VA
- Primary voltage: 240/480 VAC (60 Hz) or 220/440 VAC (50 Hz)
- Secondary voltage: 110 VAC (50 Hz) / 120 VAC (60 Hz)
- Fuse blocks: 2 primary, 1 secondary
- Connection type: Screw terminal
- Dimensions (H x L x W): 150mm x 100mm x 120mm
- Weight: 2.5 kg
Key Features
- Single phase control circuit transformer
- Primary voltage: 240/480 VAC (60 Hz) or 220/440 VAC (50 Hz)
- Secondary voltage: 110 VAC (50 Hz) / 120 VAC (60 Hz)
- Includes 2 primary and 1 secondary fuse blocks
- Screw terminal connections
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control circuits requiring voltage transformation
- Automation systems
- Electrical control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by providing appropriate voltage levels for control circuits
- Reduces electrical losses in control systems
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1497BBASX3N Control Circuit Transformer is available now for immediate purchase. Ideal for industrial and automation control applications.
