Control Relay 110VDC Coil | 2NO 2NC Contacts | 10A Rated | DIN-Rail by NHP
Control relay with 110VDC coil and 2NO 2NC contacts—ideal for industrial automation systems. Built for reliable performance, with 10A operation at 400V and efficient power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

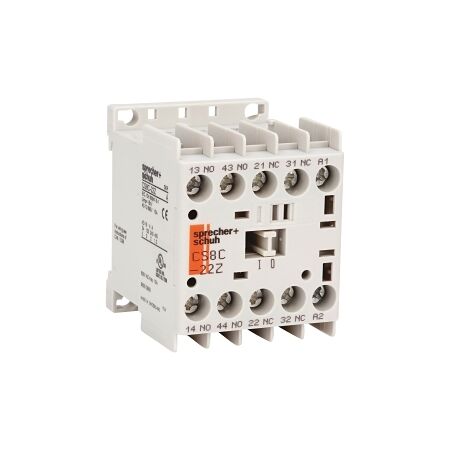

Product Name/Title: S+S CS8 Relay 110VDC Coil 2NO 2NC Contact
Brand: NHP
SKU: CS8C22Z110VDC
Alternatively Known As: Control Relay, Mini Relay, Contactor Relay
Technical Specifications
- Number of Auxiliary Contacts (NO): 2
- Number of Auxiliary Contacts (NC): 2
- Rated Operation Current (Ie) at 400 V: 10 A
- Max Rated Operation Voltage (Ue) AC: 690 V
- Voltage Type for Actuating: DC
- Control Supply Voltage (Us) at DC: 110 V
- Power Consumption DC Coil Pickup: 3 W
- Power Consumption DC Coil Hold-in: 3 W
- Mounting Method: DIN-rail/screw
- Connection Type Auxiliary Circuit: Screw connection
- Dimensions (H x L x W): 56mm x 53mm x 45mm
- Weight: 0.2 kg
Key Features
- Control relay with 2 normally open and 2 normally closed contacts.
- Rated for 10 A operation at 400 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits for machinery
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient power consumption reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS8 Relay 110VDC Coil 2NO 2NC Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
