Control Relay 2 NO | <= 690 V | 240 V AC Coil | Compact Design by Clipsal
Control relay with 2 NO contacts and <= 690 V operational voltage—ideal for industrial electromagnetic load control. Built for high reliability, with compact 27mm width for easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

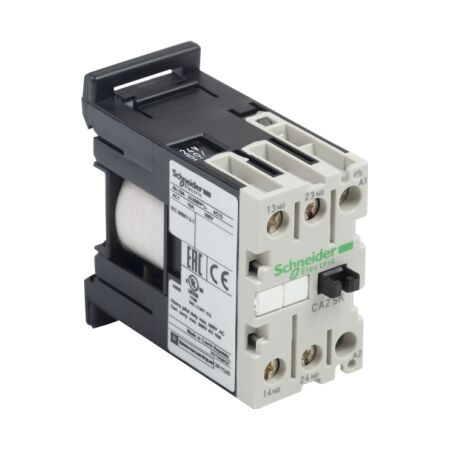

Product Name/Title: TeSys K, Control Relay, 2 NO, <= 690 V, 240 V AC coil
Brand: Clipsal
SKU: CA2SK20U7
Alternatively Known As: TeSys SK Mini Control Relay, Control Relay 2 NO, Electromagnetic Load Relay
Technical Specifications
- Rated operational voltage: <= 690 V
- Control circuit voltage: 240 V AC 50/60 Hz
- Utilisation category: AC-15/DC-13
- Rated thermal current: 10 A (at 55 °C)
- Inrush power: 16 VA (at 20 °C)
- Hold-in power consumption: 4.2 VA (at 20 °C)
- Operating time: 6...8 ms for de-energisation and 7...14 ms for energisation
- Maximum operating rate: 1200 cycles/hour
- Dimensions (H x L x W): 56mm x 55.5mm x 27mm
- Weight: 0.132 kg
Key Features
- Compact design (27mm width) for easy installation on a 35mm DIN rail.
- High reliability and durability with a mechanical durability of 10 million cycles.
- Multi standards certified (IEC, UL, CSA, CCC, EAC).
- Green Premium product compliant with RoHS/REACh.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control of electromagnetic loads in various applications.
Standards & Compliance
- Complies with IEC standards for safety and performance.
Environmental Benefits
- Green Premium product compliant with RoHS/REACh.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys K Control Relay with 2 NO contacts is available now for immediate purchase. Ideal for industrial applications requiring reliable control of electromagnetic loads.
