Control Relay 240VAC Coil | 2NO 2NC Contacts | DIN-Rail/Screw Mount by NHP
Control relay with 240VAC coil and 2NO 2NC contacts—ideal for industrial automation and commercial HVAC systems. Built for reliable control switching, with efficient power consumption and versatile mounting options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

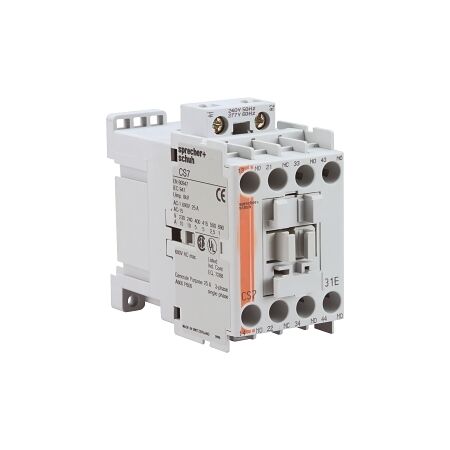

Product Name/Title: S+S CS7 Control Relay 240VAC Coil 2NO 2NC Contact
Brand: NHP
SKU: CS722E240VA
Alternatively Known As: Control Relay, Contactor Relay, CS7 Relay
Technical Specifications
- Number of Auxiliary Contacts (NO): 2
- Number of Auxiliary Contacts (NC): 2
- Rated Operation Current (Ie) at 400V: 20 A
- Max Rated Operation Voltage (Ue) AC: 690 V
- Voltage Type for Actuating: AC
- Control Supply Voltage (Us) at AC 50 Hz: 240 V
- Power Consumption AC Coil Pickup: 75 VA
- Power Consumption AC Coil Hold-in: 9.5 VA
- Control Supply Voltage (Us) at AC 60 Hz: 277 V
- Mounting Method: DIN-rail/screw
- Connection Type Auxiliary Circuit: Screw connection
- Dimensions (H x L x W): 81mm x 86.5mm x 45mm
- Weight: 0.39 kg
Key Features
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts for versatile control options.
- Rated for operation at 240VAC with a maximum voltage of 690V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable control switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient power consumption reduces energy waste in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Control Relay 240VAC Coil 2NO 2NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
