Control Relay 2NO 2NC | 220VDC Coil | 10A Rated | Compact DIN-Rail by NHP
Control relay with 2 normally open and 2 normally closed contacts, rated for 10A at 400V—ideal for industrial automation systems. Built for efficient power use, with compact DIN-rail mounting for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

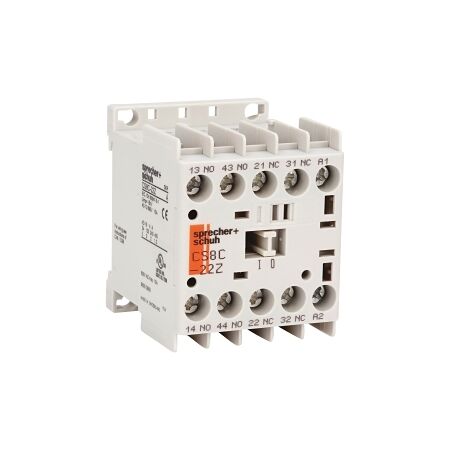

Product Name/Title: S+S CS8 Relay 220VDC Coil 2NO 2NC Contact
Brand: NHP
SKU: CS8C22Z220VDC
Alternatively Known As: Control Relay, Mini Relay, Contactor Relay
Technical Specifications
- Number of auxiliary contacts (NO): 2
- Number of auxiliary contacts (NC): 2
- Rated operation current (Ie) at 400 V: 10 A
- Max rated operation voltage (Ue) AC: 690 V
- Voltage type for actuating: DC
- Control supply voltage (Us) at DC: 220 V
- Power consumption DC coil pickup: 3 W
- Power consumption DC coil hold-in: 3 W
- Mounting method: DIN-rail/screw
- Connection type auxiliary circuit: Screw connection
- Dimensions (H x L x W): 56mm x 53mm x 45mm
- Weight: 0.2 kg
Key Features
- Control relay with 2 normally open and 2 normally closed contacts.
- Rated for 10 A operation at 400 V.
- Compact design suitable for DIN-rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits for machinery
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient power consumption reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS8 Relay 220VDC Coil 2NO 2NC Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
Non-Returnable & Non-Cancellable
