Control Relay 3NO+2NC | 0-690V | 24VDC Low Consumption | Screw Clamp by Clipsal
Control relay with 3NO+2NC contacts and 24VDC low consumption coil—ideal for industrial machinery and automation systems. Built for durability, with screw clamp terminals for easy connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

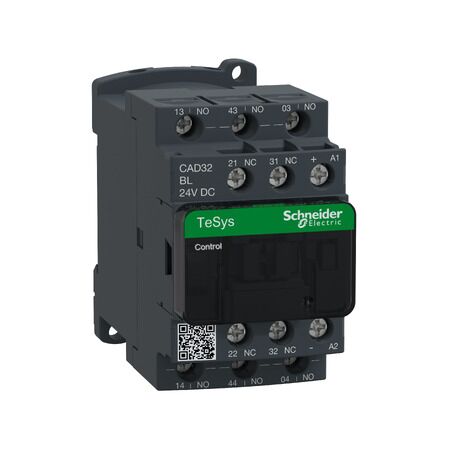

Product Name/Title: TeSys K, Control Relay, 3NO+2NC, 0 to 690V, 24VDC low consumption coil, screw clamp
Brand: Clipsal
SKU: CAD32BL
Alternatively Known As: TeSys Control Relay, CAD32BL Relay, 3NO2NC Relay
Technical Specifications
- Rated operational voltage: <= 690V AC
- Control circuit type: DC low consumption
- Rated insulation voltage: 600V UL certified
- Rated impulse withstand voltage: 6 kV
- Conventional free air thermal current: 10 A at 60 °C
- Rated short-time withstand current: 100 A for 1 second
- Operating time: 65...88 ms for coil energisation
- Dimensions (H x L x W): 77mm x 93mm x 45mm
- Weight: 0.58 kg
Key Features
- 3 Normally Open (NO) and 2 Normally Closed (NC) contacts
- Low consumption 24V DC coil
- Screw clamp terminals for easy connections
- Mechanical durability of 30 million cycles
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control circuits in machinery and automation systems
Standards & Compliance
- Complies with EN/IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Product complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys K Control Relay is available now for immediate purchase. Ideal for industrial control applications.
