Control Relay 415VAC Coil | 2NO 2NC Contacts | 20A Rated | DIN-Rail by NHP
Control relay with 415VAC coil and 2NO 2NC contacts—ideal for industrial automation systems. Built for machinery control circuits, with 20A rated current and efficient power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

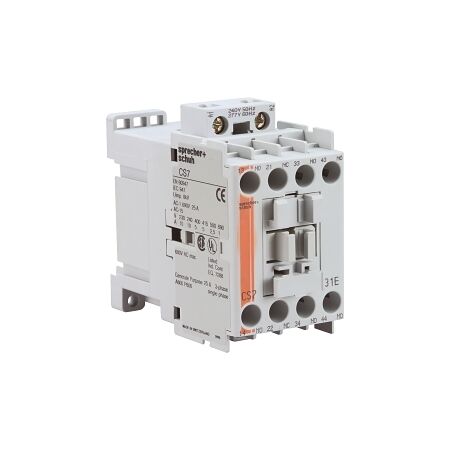

Product Name/Title: S+S CS7 Control Relay 415VAC Coil 2NO 2NC Contact
Brand: NHP
SKU: CS722E415VA
Alternatively Known As: Control Relay, Contactor Relay, CS7 Relay
Technical Specifications
- Number of Auxiliary Contacts (NO): 2
- Number of Auxiliary Contacts (NC): 2
- Rated Operation Current (Ie) at 400 V: 20 A
- Max Rated Operation Voltage (Ue) AC: 690 V
- Rated Control Supply Voltage (Us) at AC 50 Hz: 400-415 V
- Power Consumption AC Coil Pickup: 75 VA
- Power Consumption AC Coil Hold-in: 9.5 VA
- Mounting Method: DIN-rail/screw
- Connection Type Auxiliary Circuit: Screw connection
- Dimensions (H x L x W): 81mm x 86.5mm x 45mm
- Weight: 0.39 kg
Key Features
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
- Rated operation current of 20 A.
- Compatible with AC voltage types.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits for machinery
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient power consumption reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Control Relay 415VAC Coil 2NO 2NC Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
Non-Returnable & Non-Cancellable
