Control Relay 4P 690V | 24V DC Coil | Spring Terminal by Clipsal
Control relay with 4 poles and 690V operational voltage—ideal for industrial machinery and automation systems. Built for durability with 20 million cycles and easy wiring via spring terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

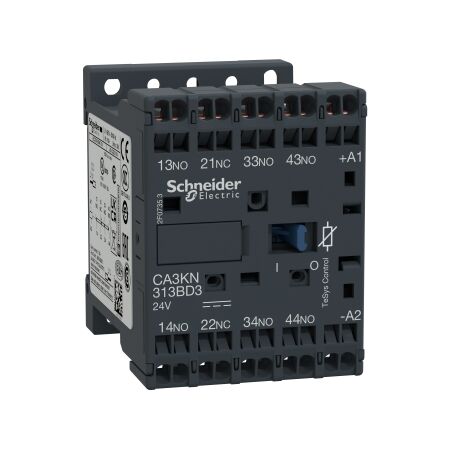

Product Name/Title: TeSys K, Control Relay, 4P(3NO+1NC), 690V, 24V DC coil, spring terminal
Brand: Clipsal
SKU: CA3KN313BD3
Alternatively Known As: TeSys Relay, Control Relay, 4 Pole Relay, Industrial Relay
Technical Specifications
- Rated operational voltage: <= 690V
- Coil voltage: 24V DC
- Mechanical durability: 20 million cycles
- Insulation resistance: > 10 MOhm
- Operating temperature: -25 to 50 °C
- Inrush power: 3W
- Hold-in power consumption: 3W
- Dimensions (H x L x W): 58mm x 57mm x 45mm
- Weight: 0.225 kg
Key Features
- 4 poles with 3 normally open and 1 normally closed contact configuration.
- Rated operational voltage up to 690V.
- Spring terminals for easy wiring.
- Mechanical durability of 20 million cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control circuits in machinery and automation systems
Standards & Compliance
- Complies with EN/IEC 60947-4-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys K Control Relay is available now for immediate purchase. Ideal for industrial control applications.
