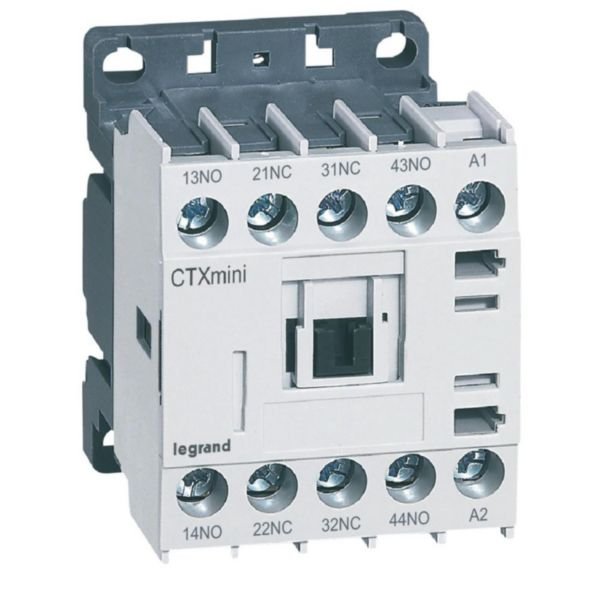

Control Relay CTX3 2NO2NC 415V AC | 2 Normally Open & 2 Normally Closed Contacts | High Endurance | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416829
$66.70 List price: $83.10
+ −
30 Days Return Delivery Options
Control relay CTX3 2NO2NC 415V AC is designed for reliable motor control and protection circuits, featuring 2 normally open and 2 normally closed contacts. With a high endurance of up to 20 million mechanical operations, it's perfect for tertiary and industrial electrical installations, ensuring efficient automation and switching.

Product Name/Title: Control Relay CTX3 2NO2NC 415V AC | 2 Normally Open & 2 Normally Closed Contacts | High Endurance | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416829

Alternatively Known As: Control relay 2NO2NC 415V AC, CTX3 relay, Legrand motor control relay, industrial control relay

Technical Specifications
  • Rated control supply voltage AC 50 Hz: 340-440 V
  • Rated control supply voltage AC 60 Hz: 340-440 V
  • Voltage type for actuating: AC
  • Rated operation current Ie at 400 V: 1.9 A
  • Mounting method: DIN-rail or screw
  • Number of auxiliary contacts NO: 2
  • Number of auxiliary contacts NC: 2
  • Connection type auxiliary circuit: Screw connection
  • Endurance: up to 20 million mechanical operations and 0.5 million electrical operations (AC-15)
  • Number of operation cycles (AC-3) per hour: 1800
  • Suitable for manual operation: Yes
  • With LED indication: No
  • Dimensions (H x L x W): 85mm x 60mm x 22mm
  • Weight: 0.3 kg
Key Features
  • 2 Normally Open (NO) and 2 Normally Closed (NC) main contacts
  • Screw terminals for power and coil connections
  • Extendable contacts with CTX3 mini auxiliary contact blocks
  • High endurance: up to 20 million mechanical and 0.5 million electrical operations
  • Designed for mounting on 35 mm DIN rail or mounting plate
  • Suitable for manual operation
  • Interface available for control
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial electrical installations
  • Motor control and protection circuits
  • Automation systems requiring reliable relay switching
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.

Available Now

The Legrand Control Relay CTX3 2NO2NC 415V AC is available for immediate purchase, ideal for tertiary and industrial motor control applications.
