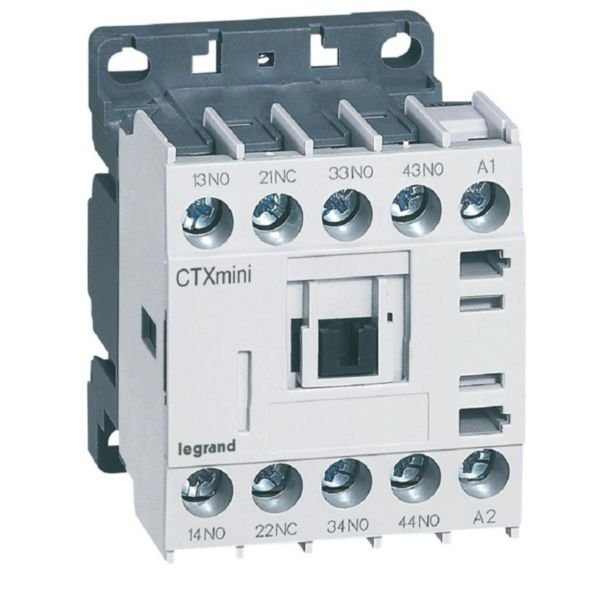

Control Relay CTX3 3NO1NC 110V AC | 3NO + 1NC Contacts | DIN-Rail Mountable | by Legrand

BRAND: Legrand
SKU: 416814
$66.70 List price: $83.10
+ −
30 Days Return Delivery Options
Control relay CTX3 3NO1NC 110V AC features 3 normally open and 1 normally closed contacts, making it ideal for motor control and protection systems. Designed for industrial and tertiary electrical installations, this relay supports up to 1800 operation cycles per hour and is suitable for manual operation, ensuring reliable performance in automation and control panels.

Product Name/Title: Control Relay CTX3 3NO1NC 110V AC | 3NO + 1NC Contacts | DIN-Rail Mountable | by Legrand

Brand: Legrand

SKU: 416814

Alternatively Known As: Control relay 3NO1NC 110V AC, CTX3 relay, Legrand motor control relay

Technical Specifications
  • Rated control supply voltage AC 50 Hz: 93.5-121 V
  • Rated control supply voltage AC 60 Hz: 93.5-121 V
  • Voltage type for actuating: AC
  • Rated operation current Ie at 400 V: 1.9 A
  • Mounting method: DIN-rail or screw
  • Number of auxiliary contacts normally closed: 1
  • Number of auxiliary contacts normally open: 3
  • Connection type auxiliary circuit: Screw connection
  • Suitable for manual operation: Yes
  • Endurance: 20 million mechanical operations, 0.5 million electrical operations (AC-15)
  • Operation cycles per hour (AC-3): 1800
  • Dimensions (H x L x W): 85mm x 60mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 3 Normally Open (NO) + 1 Normally Closed (NC) main contacts
  • Screw terminals for power and coil connections
  • Contacts extendable with CTX3 mini auxiliary contact blocks
  • Endurance up to 20 million mechanical operations and 0.5 million electrical operations (AC-15)
  • Supports 1800 operation cycles per hour (AC-3)
  • Compact size for optimized cabinet space
  • Suitable for manual operation
  • Interface available
  • Mounting on 35 mm DIN rail or mounting plate
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with industrial control equipment and compliant with local electrical standards.
Applications
  • Tertiary and industrial electrical installations
  • Motor control and protection systems
  • Automation and control panels
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance
  • Manufactured through environmentally conscious processes
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.

Available Now

Legrand Control Relay CTX3 3NO1NC 110V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
