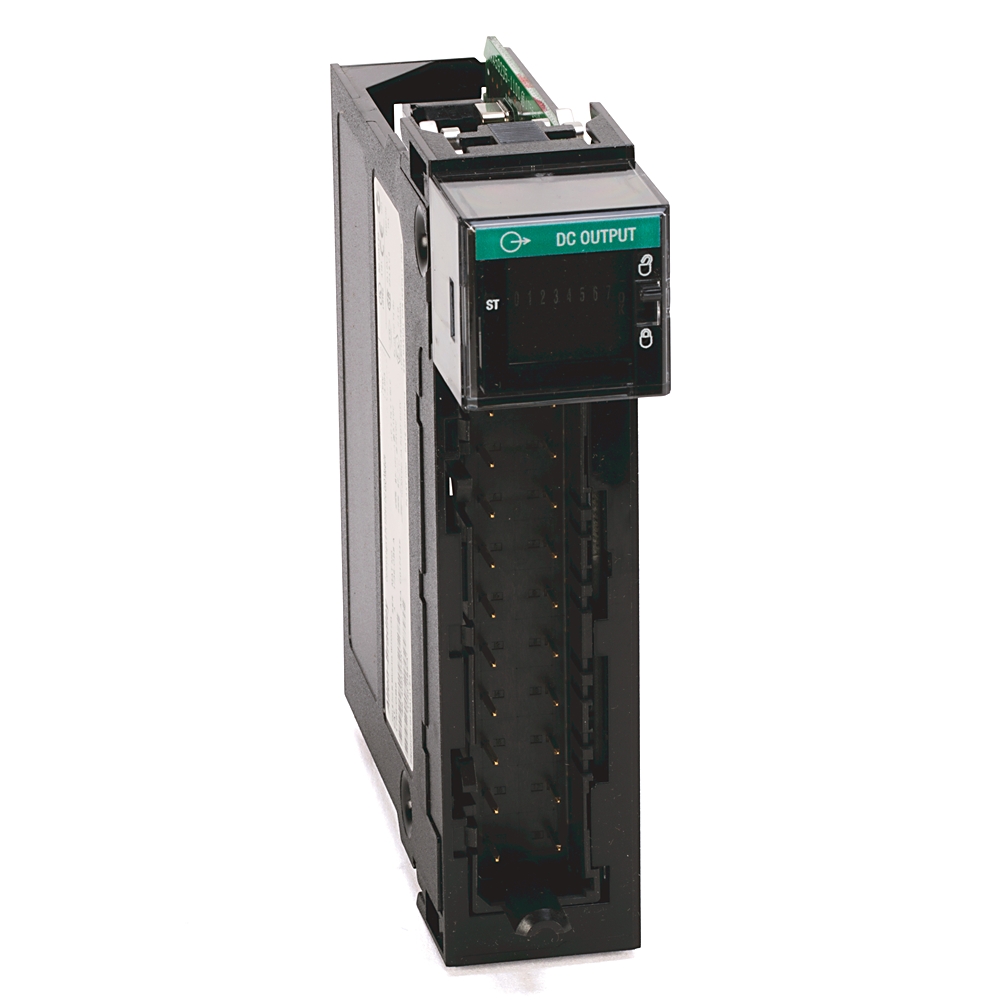

ControlLogix 8DO Digital Output Module | 90-146V DC | 2A Output per Channel | Fully Isolated | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 1756OH8I
$2,020.40 List price: $2,517.80
+ −
30 Days Return Electricians Unlock Trade Access
The ControlLogix 8DO Digital Output Module features 8 digital outputs with a voltage range of 90-146V DC and a robust 2A output current per channel. Designed for industrial automation control systems, this module ensures high reliability and durability, making it ideal for manufacturing process control and machine monitoring. Its fully isolated outputs enhance safety and performance in demanding environments.

Alternatively Known As: ControlLogix Digital Output Module, 8 Channel DC Output Module, Allen-Bradley 8DO Module

Technical Specifications
  • Number of Outputs: 8 digital outputs
  • Output Voltage: 90-146V DC
  • Output Current: 2A per channel
  • Isolation: Fully isolated outputs
  • Module Type: Digital Output
  • Compatibility: ControlLogix system
  • Dimensions (H x L x W): 120mm x 130mm x 50mm
  • Weight: 0.5 kg
Key Features
  • 8 digital outputs
  • 90-146V DC isolated power supply
  • 2A output current per channel
  • High reliability and durability for industrial environments
Professional Installation Requirements
  • Installation by a qualified industrial electrician or automation technician is required to ensure proper integration and safety compliance.
Applications
  • Industrial automation control systems
  • Manufacturing process control
  • Machine control and monitoring
  • Factory automation
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient operation reduces power consumption in industrial control systems
  • Supports automation that can optimize resource use and reduce waste
Warranty Information

Standard manufacturer warranty applies, typically 1 year against defects.

Available Now

The Allen-Bradley CONTROLLOGIX 8DO 90-146V DC Isolated 2A Module is available for immediate purchase. Ideal for industrial automation and control system applications.
