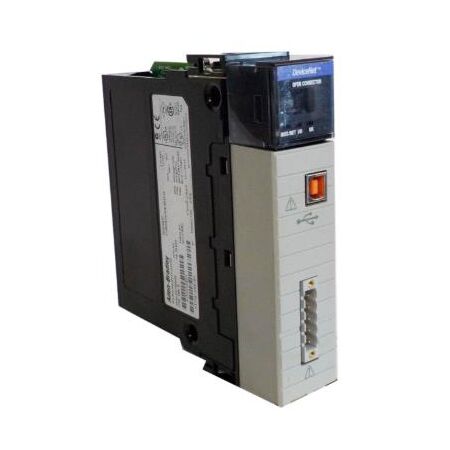

ControlLogix DeviceNet Bridge Scanner Module | Supports 64 Nodes | 125-500 kbps Communication Rates | Conformal Coating | by Allen-Bradley
The ControlLogix DeviceNet Bridge Scanner Module is designed for seamless integration in industrial automation systems, supporting up to 64 DeviceNet nodes with communication rates of 125, 250, and 500 kbps. Its conformal coating ensures protection in harsh environments, making it ideal for reliable DeviceNet network communication and ControlLogix system integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- DeviceNet nodes supported: 64
- Communication rates: 125 kbps, 250 kbps, 500 kbps
- Maximum cable length: 500 m at 125 kbps, 250 m at 250 kbps, 100 m at 500 kbps
- Conformal coating for environmental protection
- Dimensions (H x L x W): 120mm x 150mm x 50mm
- Weight: 0.3 kg
Key Features
- Supports up to 64 DeviceNet nodes
- Communication rates of 125 kbps, 250 kbps, and 500 kbps
- Maximum cable lengths vary by communication rate: 500 m at 125 kbps, 250 m at 250 kbps, 100 m at 500 kbps
- Conformal coating for protection in harsh environments
Professional Installation Requirements
- Installation should be performed by a qualified automation or electrical professional familiar with ControlLogix and DeviceNet systems.
Applications
- Industrial automation and control systems
- DeviceNet network communication
- ControlLogix system integration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Conformal coating extends product life reducing electronic waste
- Supports efficient network communication reducing energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1756DNBK Bridge Scanner Module is available for immediate purchase, ideal for industrial automation and DeviceNet communication applications.
