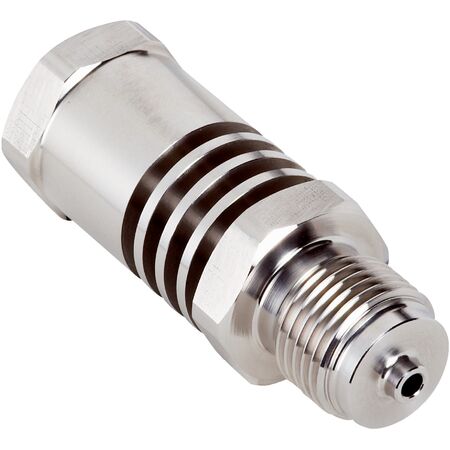

Cooling Element G1/2 to G1/4 | 150°C Process Temperature | 200 Bar Pressure | Stainless Steel | by SICK
The Cooling Element G1/2 to G1/4 is designed for industrial process temperature control, extending up to 150°C while maintaining a maximum ambient temperature of 30°C. Constructed from durable stainless steel, it includes two gaskets for enhanced performance, making it ideal for device protection and care in machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cooling Element G1/2 to G1/4 | 150°C Process Temperature | 200 Bar Pressure | Stainless Steel | by SICK
Brand: SICK
SKU: 5332155
Alternatively Known As: Cooling element G1/2 to G1/4, Process temperature extension cooling device, Stainless steel cooling element
Technical Specifications
- Process temperature extension up to 150°C
- Maximum ambient temperature: 30°C
- Maximum process pressure: 200 bar
- Outer thread: G 1/4
- Inner thread: G 1/2
- Material: Stainless steel 1.4571
- Includes 2 stainless steel gaskets (1.4571)
- Not suitable for pressure measurement in steam
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Cooling element extends process temperature up to 150°C
- Maximum ambient temperature of 30°C
- Maximum process pressure of 200 bar
- Outer thread G 1/4 and inner thread G 1/2
- Includes 2 stainless steel gaskets (1.4571)
- Constructed from stainless steel 1.4571 for durability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial cooling and pressure systems to ensure safety and compliance.
Applications
- Industrial process temperature control
- Device protection and care in machinery
- Cooling applications requiring temperature extension up to 150°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances equipment longevity by preventing overheating
- Reduces energy waste by maintaining optimal device temperatures
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK BEF-CE-G12G14-150C Cooling Element is available for immediate purchase, ideal for industrial device protection and temperature control applications.
