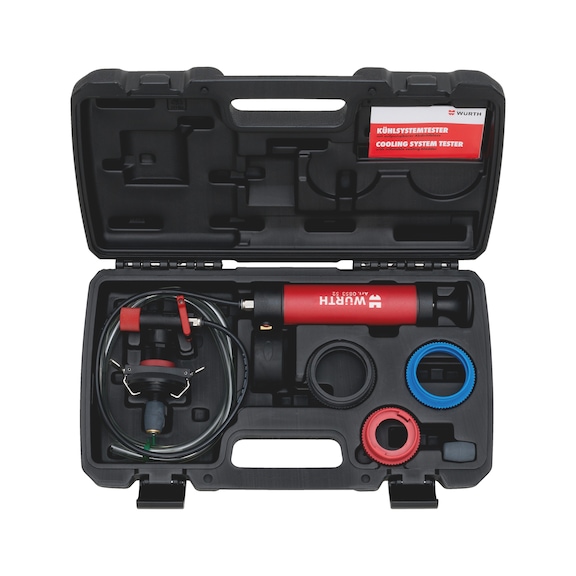

Cooling System Tester with Inflatable Sealing Bladder | 1-2 Bar Testing Pressure | Color-Coded Bladders | by Wurth
The Cooling System Tester with Inflatable Sealing Bladder is designed for effective pressure testing on radiator systems, featuring a testing pressure range of 1-2 bar and color-coded bladders for various vehicle types. Ideal for automotive workshops and experienced users, this tool helps detect leaks early, ensuring efficient engine cooling and preventing coolant loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cooling System Tester with Inflatable Sealing Bladder | 1-2 Bar Testing Pressure | Color-Coded Bladders | by Wurth
Brand: Wurth
SKU: 85352
Alternatively Known As: Radiator Pressure Tester, Cooling System Pressure Tester, Inflatable Radiator Tester, Radiator Leak Tester
Technical Specifications
- Min./max. recommended testing pressure: 1-1.6 bar
- Max. pressure of bladder: 1.7 bar
- Max. testing pressure: 2 bar
- Min./max. radiator opening: 20-48 mm
- Dimensions (H x L x W): 150mm x 350mm x 250mm
- Weight: 1.2 kg
Key Features
- Inflatable sealing bladder for very high coverage of radiator systems
- Securing rings for testing on running engines
- Safety loops grip around securing rings to prevent bladder slipping
- Color-coded bladders: Blue for VW engines up to 1998, Black for VW and Audi engines from 1998, Red for Japanese vehicles
- Includes pressure pump, spare sealing bladder, securing rings, high-quality case, and operating instructions
Professional Installation Requirements
- No professional installation required. Suitable for use by trained automotive technicians or experienced users.
Applications
- Pressure testing on radiator systems
- Testing radiator coolers or expansion tanks
- Suitable for bayonet and screw caps
- Universal applications for water-cooled engines
- Testing on running engines of various motor vehicles
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps detect leaks early to prevent coolant loss and environmental contamination
- Supports maintenance of efficient engine cooling systems, reducing emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Cooling System Tester with Inflatable Sealing Bladder is available now for immediate purchase. Ideal for automotive workshops and vehicle maintenance professionals.
