Trade Discount 17%

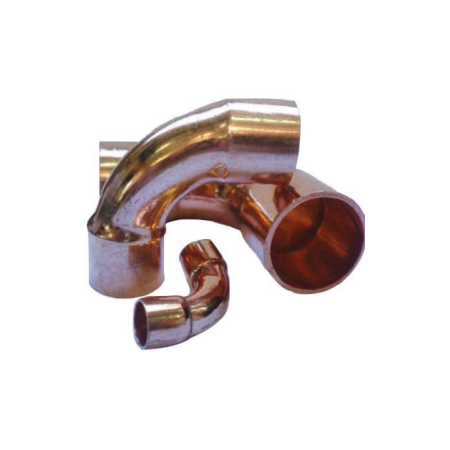

Copper 90 Degree Elbow | Compatible with CO2 & R-410A | ISO/AS 5149.2 Certified | by Aspen Pumps
The Copper 90 Degree Elbow fitting, designed for HVAC and refrigeration systems, is compatible with CO2 refrigerant up to 60 Bar and R-410A refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in high-pressure applications. Ideal for both commercial and residential installations, this elbow minimizes mechanical stress and is perfect for efficient refrigerant piping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper 90 Degree Elbow | Compatible with CO2 & R-410A | ISO/AS 5149.2 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 103-1616
Alternatively Known As: Copper 90 Degree Elbow, Refrigeration Copper Elbow, HVAC Copper Fitting, R-410A Copper Elbow
Technical Specifications
- Compatible with CO2 refrigerant up to 60 Bar
- Suitable for R-410A refrigerant
- Exceeds ISO/AS 5149.2 standards
- Manufactured in ISO9001 accredited facility
- Batch verification burst tested
- Recommended 15% silver solder for brazing in high pressure applications
- Designed to minimize mechanical and thermal stress
- Dimensions (H x L x W): 25mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high pressure systems.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- Commercial and residential air conditioning installations
- Industrial refrigeration systems
Standards & Compliance
- AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- High durability reduces the need for frequent replacements, minimizing waste
- Manufactured to reduce refrigerant leakage, protecting the environment from harmful emissions
Warranty Information
Warranty details available upon request; typically covered under manufacturer’s standard warranty for defects.
Available Now
The Aspen Pumps SKY Copper Elbow 90° fitting 1 ID x 1 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations.
