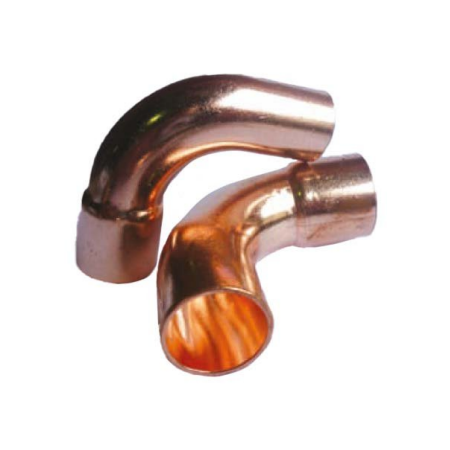

Copper 90 Degree Elbow Fitting | R-410A & HP-60 Rated | ISO/AS 5149.2 Compliant | by Aspen Pumps
The Copper 90 Degree Elbow Fitting is designed for HVAC refrigeration systems, ensuring reliable connections for R-410A and HP-60 refrigerants. Manufactured to exceed ISO/AS 5149.2 standards, this fitting is ideal for both commercial and residential air conditioning installations, providing durability and safety in high-pressure applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper 90 Degree Elbow Fitting | R-410A & HP-60 Rated | ISO/AS 5149.2 Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 102-2626
Alternatively Known As: Copper 90 Degree Elbow Fitting, Refrigeration Copper Elbow, R-410A Copper Elbow, HVAC Copper Fitting
Technical Specifications
- Outer Diameter (OD): 1-5/8 inches
- Inner Diameter (ID): 1-5/8 inches
- Complies with ISO/AS 5149.2 standards for refrigerant systems
- Suitable for R-410A and HP-60 refrigerants
- Burst tested after brazing to simulate field conditions
- Manufactured in ISO9001 accredited facility
- Dimensions (H x L x W): 42mm x 42mm x 42mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- CE and UL certified
- Manufactured in ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for R-410A and HP-60 rating for safety
- Designed to remove stress and fatigue focus points
- Recommended 15% silver solder for brazing in high pressure applications
- Installation recommended according to AS HB40 by qualified tradespeople
Professional Installation Requirements
- Installation should be performed by qualified tradespeople following AS HB40 methodology, using 15% silver solder for brazing in high pressure applications.
Applications
- HVAC refrigeration systems requiring reliable copper fittings
- High pressure refrigerant piping installations
- Commercial and residential air conditioning and refrigeration systems
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long service life and reduced waste
Warranty Information
Warranty terms as per Aspen Pumps standard product warranty policy.
Available Now
The Aspen Pumps SKY Copper Elbow 90° fitting is available for immediate purchase, ideal for HVAC and refrigeration system installations.
