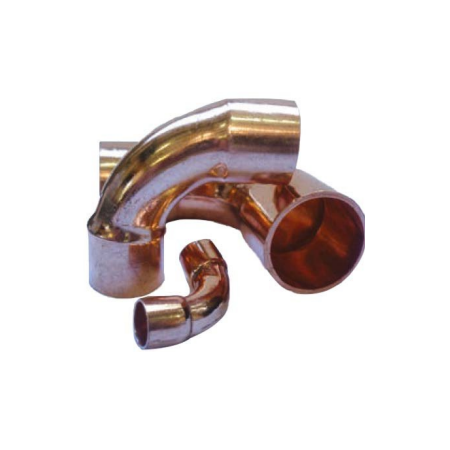

Copper 90 Degree Elbow | R-410A & CO2 Compatible | ISO9001 Certified | by Aspen Pumps
The Copper 90 Degree Elbow 5/8 ID x 5/8 ID is designed for high-pressure refrigeration systems, compatible with R-410A and CO2 refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in HVAC installations. Ideal for professional tradespeople, this fitting minimizes mechanical stress and is marked for safety, making it a top choice for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper 90 Degree Elbow | R-410A & CO2 Compatible | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 103-1010
Alternatively Known As: Copper 90 Degree Elbow, Refrigeration Copper Fitting, HVAC Copper Elbow, R-410A Copper Elbow
Technical Specifications
- Compatible with CO2 refrigerant at 60 Bar pressure
- Suitable for R-410A refrigerant
- Manufactured to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Passed batch verification burst testing
- Recommended 15% silver solder for brazing in high pressure applications
- Designed to minimize mechanical and thermal stress
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety indicating R-410A and HP-60 rating
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology, using 15% silver solder for brazing in high pressure systems.
Applications
- Refrigeration systems requiring high pressure copper fittings
- Air conditioning installations
- HVAC systems using R-410A and CO2 refrigerants
- Industrial and commercial refrigeration piping
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- High durability reduces the need for frequent replacements, minimizing waste
- Designed to prevent refrigerant leakage, protecting the environment from harmful emissions
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Elbow 90° 5/8 ID x 5/8 ID is available for immediate purchase, ideal for refrigeration and HVAC system installations.
