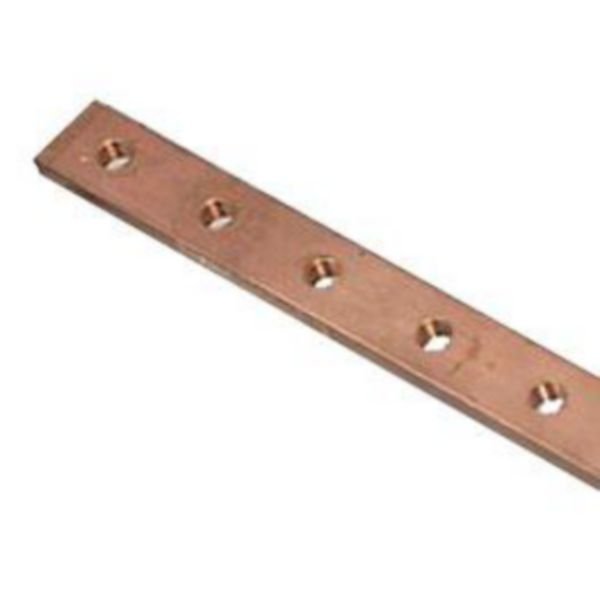

Copper Bar with Tapped Holes | 12 x 2 mm | Max 110 A | Length 990 mm | @EA of 1 | by Legrand
The Copper Bar with Tapped Holes is designed for efficient electrical connections, featuring a robust 12 x 2 mm profile and a maximum current rating of 110 A. Ideal for electrical switchboards and power distribution cabinets, this flat copper bar ensures reliable conductivity and easy mounting. Built for industrial applications, it meets AS/NZS 3000 standards, making it a dependable choice for electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Bar with Tapped Holes | 12 x 2 mm | Max 110 A | Length 990 mm | @EA of 1 | by Legrand
Brand: Legrand
SKU: 037388
Alternatively Known As: Copper busbar, copper distribution bar, electrical copper bar, copper grounding bar
Technical Specifications
- Material: Copper
- Dimensions: 12 mm height x 2 mm thickness x 990 mm length
- Rated current: Max 110 A (rated current 80 A)
- Model: Flat copper bar
- Surface protection: Untreated
- Flexible: No
- Dimensions (H x L x W): 12mm x 990mm x 4mm
- Weight: 0.5 kg
Key Features
- Copper bar with tapped holes for easy mounting and connection
- Dimensions: 12 mm height x 2 mm thickness
- Maximum current rating of 110 A
- Length of 990 mm
- Flat model with untreated surface for electrical conductivity
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical switchboards and power distribution cabinets
- Industrial electrical installations requiring copper busbars
- Electrical panel wiring and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Copper is highly recyclable, reducing environmental impact
- Durable material reduces need for frequent replacements
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Copper Bar with tapped holes 12 x 2 mm, max 110 A, length 990 mm is available for immediate purchase, ideal for electrical switchboards and power distribution applications.
