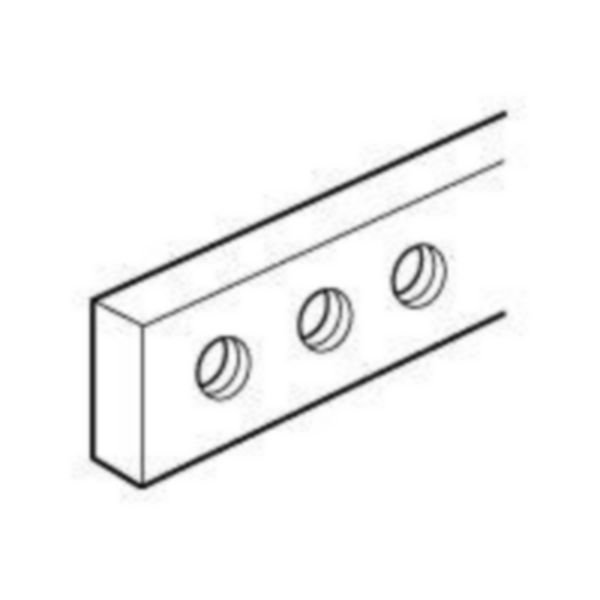

Copper Bar with Tapped Holes | 12 x 4 mm | Max 160 A | Untreated Surface | @Each of 1 | by Legrand
The Copper Bar with Tapped Holes is designed for efficient electrical installations, featuring a robust 12 x 4 mm profile and a maximum current rating of 160 A. Ideal for use in electrical switchboards and power distribution cabinets, this untreated copper bar ensures excellent conductivity and easy mounting. Perfect for industrial applications, it meets AS/NZS 3000 standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Bar with Tapped Holes | 12 x 4 mm | Max 160 A | Untreated Surface | @Each of 1 | by Legrand
Brand: Legrand
SKU: 037389
Alternatively Known As: Copper busbar, copper distribution bar, electrical copper bar, copper grounding bar
Technical Specifications
- Material: Copper
- Dimensions: 12 mm height x 4 mm width x 990 mm length
- Rated current: 160 A
- Model: Flat bar
- Surface protection: Untreated
- Flexible: No
- Dimensions (H x L x W): 12mm x 990mm x 4mm
- Weight: 0.5 kg
Key Features
- Copper bar with tapped holes for easy mounting
- Dimensions: 12 mm height x 4 mm width x 990 mm length
- Maximum current rating of 160 A
- Flat model with untreated surface for conductivity
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Electrical switchboards and power distribution cabinets
- Industrial electrical installations requiring copper busbars
- Electrical panel wiring and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Copper is a highly recyclable material, reducing environmental impact.
- Durable and long-lasting, minimizing replacement waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand Copper Bar with tapped holes 12 x 4 mm, max 160 A, length 990 mm is available for immediate purchase. Ideal for electrical switchboards and power distribution applications.
