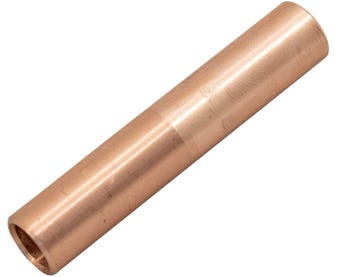

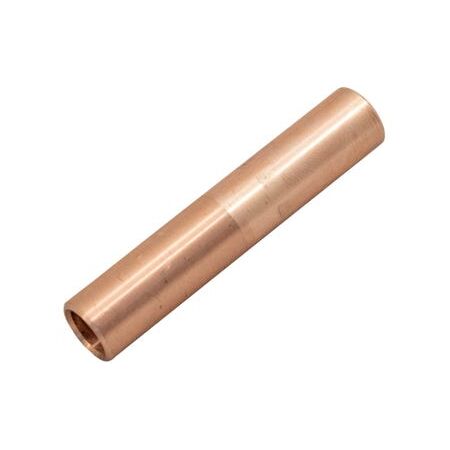

Copper Barrier Link 1000mm2 | 99.95% Pure Copper | Fully Annealed | CASB1000 by Cabac
Copper barrier link with 99.95% pure copper and fully annealed state—ideal for paper insulated cables and moisture barriers. Built for reliable electrical connectivity, with interchangeable tooling compatibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Barrier Link 1000mm2
Brand: Cabac
SKU: CASB1000
Alternatively Known As: Copper Barrier Link 1000mm, Copper Barrier Link 1000mm2, Copper Cable Barrier Link, Copper Electrical Barrier Link
Technical Specifications
- Conductive material: Copper 99.95% pure
- Oxygen content: 30 p.p.m. max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: Fully annealed
- Operating temperature: -55°C to 100°C
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Tooling is interchangeable between Cable Accessories, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 1000mm x 50mm
- Weight: 0.5 kg
Key Features
- Designed for use with paper insulated cables or any situation where an impermeable barrier to oil or moisture is required
- Copper 99.95% pure with oxygen content 30 p.p.m. max
- Tensile strength 200 MPa and ductile rating 40%
- Fully annealed final metal state
- Tooling interchangeable between Cable Accessories, Utilux, and Burndy
- Crimped with CABAC and MSS Power standard tooling copper dies
Professional Installation Requirements
- Installation should be performed by a qualified electrical technician using appropriate crimping tools to avoid damage to the barrier link.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
- Electrical power connectivity applications requiring barrier links
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable and long-lasting material reduces need for frequent replacements
Warranty Information
Warranty details available upon request from Cabac.
Available Now
The Cabac Copper Barrier Link 1000mm2 is available now for immediate purchase. Ideal for electrical power connectivity applications requiring moisture and oil impermeable barriers.
