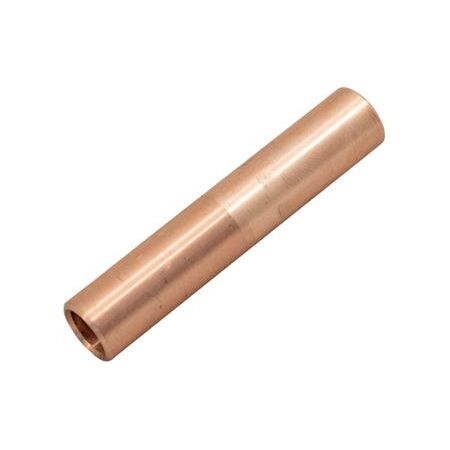

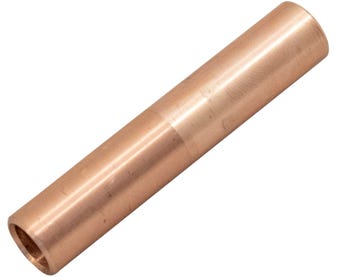

Copper Barrier Link 10mm² | 99.95% Pure Copper | -55 to 100°C | CASB10 by Cabac
Copper barrier link with 99.95% pure copper and -55 to 100°C operating range—ideal for paper insulated cables. Built for moisture and oil resistance, ensuring reliable electrical connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Barrier Link 10mm2
Brand: Cabac
SKU: CASB10
Alternatively Known As: Copper Barrier Link 10mm², Copper Barrier Lug, Copper Link for Paper Insulated Cable, Oil Barrier Copper Link
Technical Specifications
- Nominal Conductor Size: 10 mm²
- I.D. Size: 4.5 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55 to 100 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Dimensions (H x L x W): 4.5mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Designed for use with paper insulated cables or any situation requiring an impermeable barrier to oil or moisture
- Copper 99.95% pure with oxygen content 30 p.p.m. max
- Tensile strength of 200 MPa and ductile rating of 40%
- Fully annealed final metal state
- Operating temperature range from -55 to 100 degrees Celsius
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and to avoid damage to the barrier link.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
- Electrical power connectivity requiring reliable copper links
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for copper conductors and barrier links
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable and long-lasting material reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Test reports available on request.
Available Now
The Cabac Copper Barrier Link 10mm2 is available now for immediate purchase. Ideal for electrical power connectivity applications requiring moisture and oil impermeable barriers.
