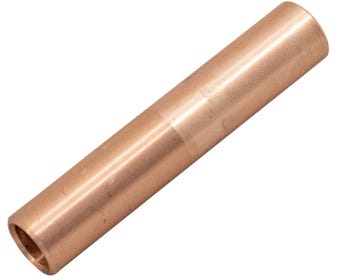

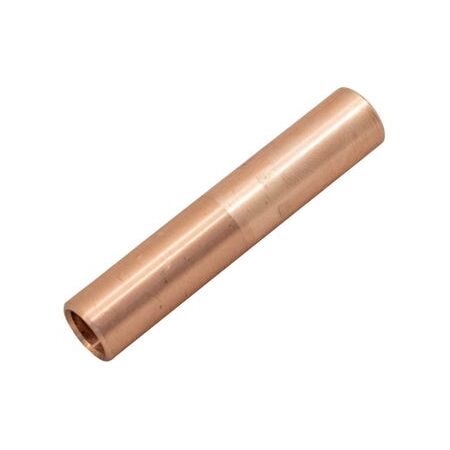

Copper Barrier Link 120mm² | Moisture & Oil Resistant | 99.95% Pure Copper by Cabac
Copper barrier link with 120mm² conductor size and moisture & oil resistance—ideal for paper insulated cables. Built for reliable electrical connectivity, with 99.95% pure copper for high conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Barrier Link 120mm2
Brand: Cabac
SKU: CASB120
Alternatively Known As: Copper Barrier Link 120mm², Copper Cable Link, Copper Electrical Link, Barrier Link for Paper Insulated Cables
Technical Specifications
- Nominal Conductor Size: 120 mm²
- I.D. Size: 15.5 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. Max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 100 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling Interchangeable with Cable Accessories, Utilux and Burndy
- Dimensions (H x L x W): 15mm x 15.5mm x 120mm
- Weight: 0.15 kg
Key Features
- Designed for use with paper insulated cables
- Provides an impermeable barrier to oil or moisture
- Crimped with CABAC and MSS Power standard tooling copper dies
- Reducing links are barrier type as well
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to avoid damage to the barrier link.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
- Electrical and power connectivity applications
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- High purity copper (99.95%) ensures efficient conductivity reducing energy loss
- Durable and fully annealed metal state extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Test reports available on request.
Available Now
The Cabac Copper Barrier Link 120mm2 is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring moisture and oil impermeable barriers.
