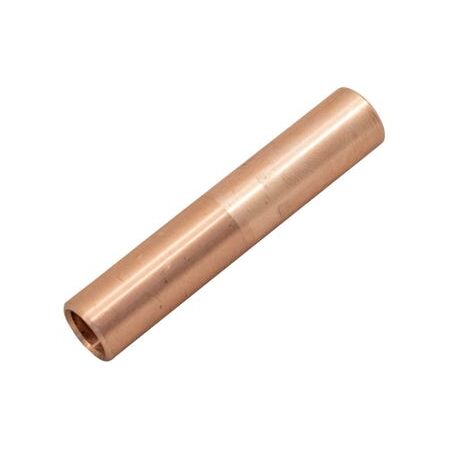

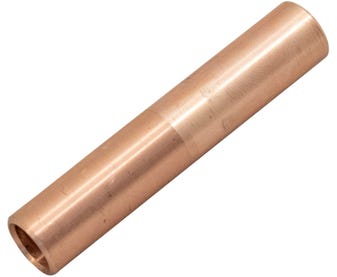

Copper Barrier Link 150mm² | 16.5mm Inner Diameter | Moisture Barrier by Cabac

BRAND: CABAC

SKU: CASB150

$44.20 List price: $53.50

+ −

30 Days Return Delivery Options

Copper barrier link with 150mm² conductor size and 16.5mm inner diameter—ideal for paper insulated cables. Built for moisture and oil resistance, ensuring reliable electrical connectivity.

Description

Product Name/Title: Copper Barrier Link 150mm2

Brand: Cabac

SKU: CASB150

Alternatively Known As: Copper Barrier Link 150mm², Copper Cable Link, Copper Crimp Link, Barrier Link for Paper Cables

Technical Specifications

Nominal Conductor Size: 150 mm²
Inner Diameter Size: 16.5 mm
Conductive Material: Copper 99.95% pure
Oxygen Content: 30 ppm max
Tensile Strength: 200 MPa
Ductile Rating: 40%
Final Metal State: Fully annealed
Operating Temperature Range: -55 to 100 °C
Total Conductivity: 99.7% IACS
Total Resistivity: 1.738 micro-ohm cm
Dimensions (H x L x W): 10mm x 150mm x 16.5mm
Weight: 0.2 kg

Key Features

Designed for use with paper insulated cables
Provides an impermeable barrier to oil or moisture
Crimped with CABAC and MSS Power standard tooling copper dies
Tooling interchangeable with Cable Accessories, Utilux, and Burndy

Professional Installation Requirements

Professional installation by qualified electrical technicians is recommended to ensure proper crimping and avoid damage to the barrier link.

Applications

Use with paper insulated cables
Situations requiring an impermeable barrier to oil or moisture
Electrical power connectivity requiring reliable copper links

Standards & Compliance

Complies with AS/NZS 4325 Part 1

Environmental Benefits

High purity copper (99.95%) ensures efficient conductivity reducing energy loss
Durable and reusable in electrical installations, reducing waste

Warranty Information

Standard manufacturer warranty applies. Test reports available on request.

Available Now

The Cabac Copper Barrier Link 150mm2 is available for immediate purchase. Ideal for electrical power connectivity applications requiring moisture and oil impermeable barriers.
