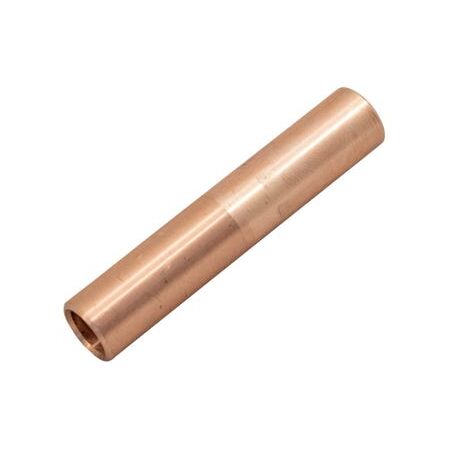

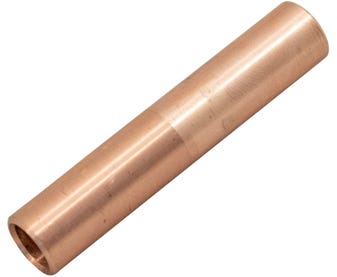

Copper Barrier Link 240mm² | 99.95% Pure Copper | Moisture Barrier by Cabac
Copper barrier link with 240mm² nominal conductor and 99.95% pure copper—ideal for paper insulated cables. Built for electrical professionals, ensuring reliable connectivity with moisture and oil impermeable barriers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Barrier Link 240mm2
Brand: Cabac
SKU: CASB240
Alternatively Known As: Copper Barrier Link 240mm², Copper Barrier Connector, Copper Cable Link, Barrier Link for Paper Insulated Cables
Technical Specifications
- Nominal Conductor: 240 mm²
- I.D. Size: 21.5 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. Max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55 to 100 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Tooling is interchangeable between Cable Accessories, Utilux and Burndy
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Designed for use with paper insulated cables or any situation where an impermeable barrier to oil or moisture is required
- Reducing links are barrier type as well
- Crimped with CABAC and MSS Power standard tooling copper dies
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional using appropriate crimping tools to avoid damage to the barrier link.
Applications
- Use with paper insulated cables
- Situations requiring an impermeable barrier to oil or moisture
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- High purity copper (99.95%) ensures efficient conductivity reducing energy loss
- Durable and fully annealed metal state extends product life reducing waste
Warranty Information
Warranty information available upon request from the manufacturer.
Available Now
The Cabac Copper Barrier Link 240mm2 is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring moisture and oil impermeable barriers.
